Applicable for tensile tests on fibers, fine wires, cords, cords, yarns, etc. Guide horn with centering groove Specimen is wrapped 180° around the bollard to prevent the breakage in the clamping area by generating a slow notch free stress relief. Conforms to ASTM D7269.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Features and Specifications
- Tensile force: 2 kN / 7 bar
- Clamping force: 1.9 kN
- Max. sample size: 0-2 mm
- Minimum specimen length: 25 cm
- Material: Anodized aluminum
- Temperature range: -10 … +80°C
- Grip weight: 1.13 kg
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
Included Items
- (1) Pneumatic bollard grip with pyramid or rubber jaw faces.
- (1) Foot pedal control with fittings.

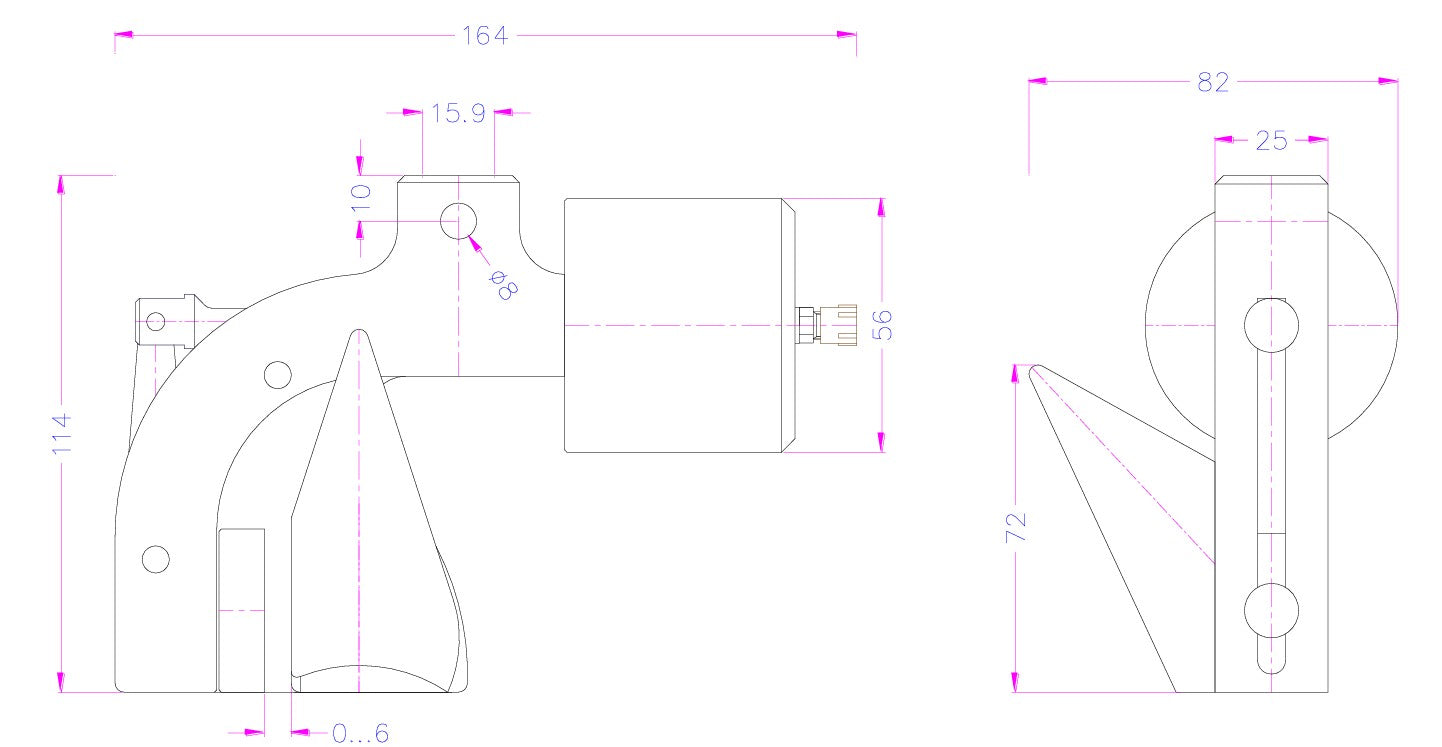

Dimensions - mm
