Bend Fixture ASTM D7249 & ASTM C393 Sandwich Constructions

4 Point bending fixture Conforming to ASTM D7249 and ASTM C393. These flexural fixtures are used to test sandwich construction panels for measuring force displacement behavior, ultimate stress and modulus.

Features

• Load capacity: 10,000 lbf (50 kN)

• Body: Aluminum

• Temperature range: 0 … +70°C
• Coupling: 5/8' (15.9 mm) or 1.25' (318 mm) eye end, other sizes available by request.

Included Items

• Upper (240 mm) and lower (600 mm) fixtures
• 4 adjustable supports with rubber faces that can be added

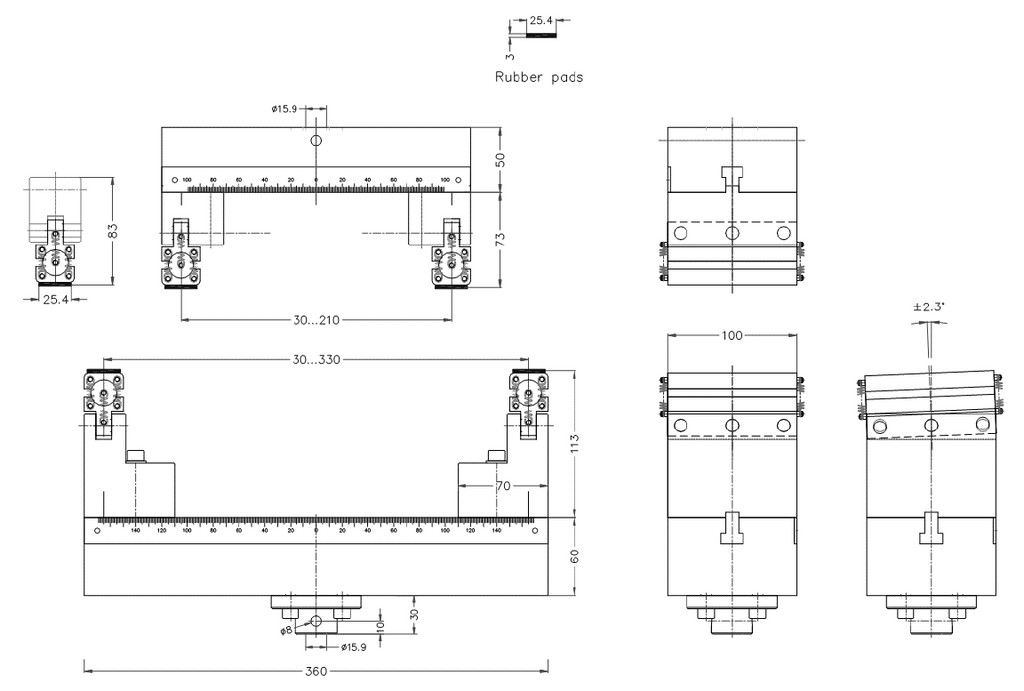

Dimensions - mm
