A31.7/12.8-M30x2, 1.25 Male Eye End to M30x2 RH Thread Adapter

355.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Eye ends are used on most universal testing machines, motorized test stands and some manual test stands. These ends can be used to convert from one size of an eye end to another allowing more options for grips that can be mounted.

          Specifications
          • Connection: 31.7 mm diameter male eye end with 12.8 mm hole for 1/2' clevis pin
          • Connection: External thread M30x2
          • Load Capacity: 50 kN
          • Material: Steel, nickel-plated
          Included Items
          • (1) Adapter
          • (2) Locking rings
          • (1) Clevis pin

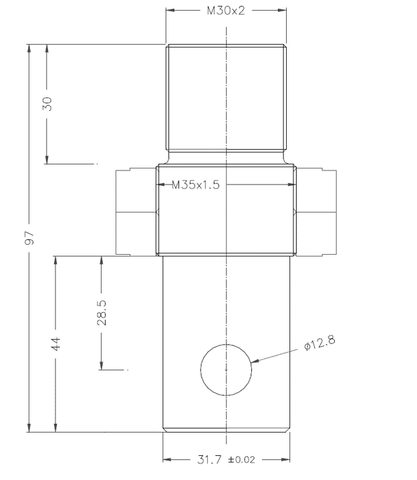

          Dimensions - mm

          Eye end adapter dimensions
