Grab test vice grips are used to determine the breaking strength and elongation of textile fabrics using a grab test procedure, ASTM D5034. The grab test is commonly employed to assess the tensile properties of woven or non-woven fabrics.
Wave jaws are used to hold the fabric securely without slippage during a test.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Specifications
- Force capacity: 500 lbF [2.5 kN]
- Jaw opening: 0-0.39 in [0-10 mm]
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Weight: 1.2 lbs [0.54 kg]
- Body: Aluminum
- Jaws
- Wave jaws, steel, hardened, nickel coated
- Jaw 1: 25 mm height x 25 mm width wave jaw
- Jaw 2: 25 mm height x 50 mm width wave jaw
- Temperature Range: 0 to +70°C
Included Items
- (1) Vice grip
- (1) 25 mm height x 25 mm width wave jaw
- (1) 25 mm height x 50 mm width wave jaw
Dimensions-mm
Same as drawing below but with 25x25mm jaw and 25x50mm jaw

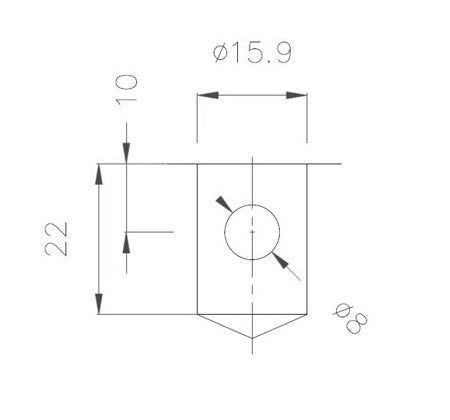

Connection Dimensions
