VG4000 vice grip is for general tensile and pull testing applications up to 4,000 lbF (20 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments
,
Chatillon
, and
Mark-10
equipment. We also sell these brands of
test stands
,
load cells
, and
force gauges
to use with our grips and fixtures. Adapters
are available to accommodate other connection types and sizes.
Features and Specifications
- Capacity: 4,000 lbF [20 kN]
- Connection: 5/8 inch female eye end (15.9 mm eye end)
- Jaw size (mm): 40 x 60
- Jaw type: Pyramid
- Opening: 0-32 mm (1.26 in)
- Weight: 5.37 kg (11.8 lbs)
- Body: Steel, nickel-plated
- Jaw Material: Hardened steel, 58 RC
- Temperature Range: 0°C … +350°C
Included Items
- (1) Vice grip
- (1) Pair of jaws

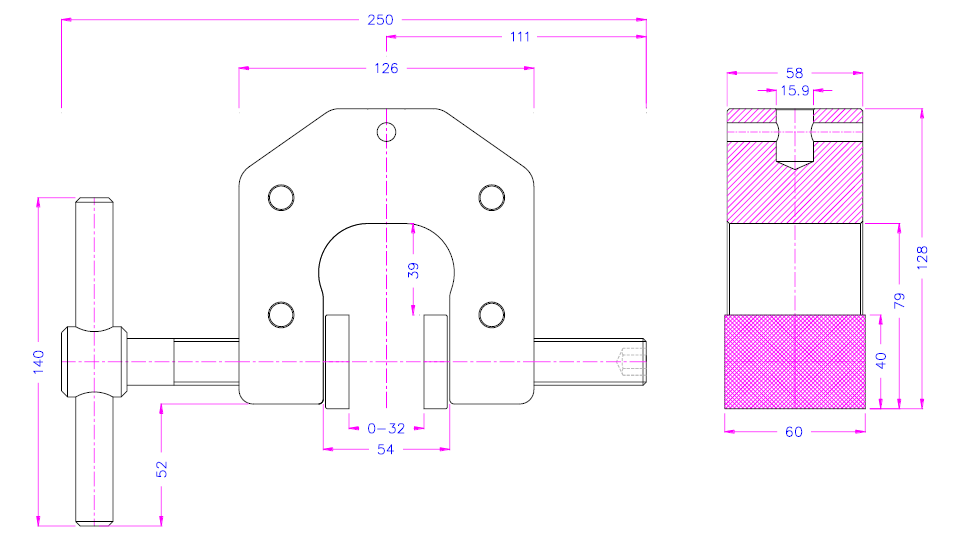

Dimensions - in [mm]
