VG200-S50, 200 lbF Vice Grip with 50 mm Opening

466.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          These vice grips are used in tension testing on force test stands and material test systems. The dual screw design accommodates samples up to 50 mm thick. Jaws can also be offset for asymmetrical test specimens. A T-handle is on one side and the other side can be adjusted using a hex key or twisting by hand.

          Pyramid (crosscut), rubber, wave, or v-jaws are included. A choice of 30 mm, 50 mm, 80 mm and 100 mm widths for the jaws.

          This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on  Lloyd Instruments ,  Chatillon , and  Mark-10  equipment. We also sell these brands of  test stands ,  load cells , and  force gauges  to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
          Features and Specifications
          • Force capacity:  1 kN [200 lbF]
          • Jaw opening: 0-50 mm (depending on jaw choice)
          • Connection: 15.9 mm (5/8') female eye end - Adapters for other sizes
          • Grip body: Anodized aluminum
          • Jaws: Steel, nickel-plated
          • Temperature Range: -70 C to +180 C
          Jaw Details



          Model Jaw Type Description Opening Jaw Size
          (H x W)          		 Weight of 1 grip with pair of jaws
          VG200-S50-P30
          Pyramid
          Pyramids 1.2x45°
          Hardened steel 58 HRC
          Nickel-plated
          0-52 mm
          0-1.18 in
          		30 x 30 0.61 kg
          VG200-S50-P50 30 x 50 0.7 kg
          VG200-S50-P80 30 x 80 0.82 kg
          VG200-S50-P100 30 x 100 0.92 kg
          VG200-S50-R30
          Rubber
          1 mm rubber coating (NBR)
          Nickel-plated
          0-50 mm
          0-1.10 in
          		30 x 30 0.62 kg
          VG200-S50-R50 30 x 50 0.56 kg
          VG200-S50-R80 30 x 80 0.82 kg
          VG200-S50-R100 30 x 100 0.92 kg
          VG200-S50-W30
          Wave
          For flexible materials
          Wave 5 mm
          Hardened steel 58HRC
          Nickel-plated
          0-52 mm
          0-1.18 in
          		30 x 30 0.61 kg
          VG200-S50-W50 30 x 50 0.69 kg
          VG200-S50-W80 30 x 80 0.82 kg
          VG200-S50-W100 30 x 100 1.0 kg
          VG200-S50-V30 V-Jaw For all kinds of round samples
          Tooth pitch 1 mm
          Hardened steel 58HRC
          Nickel-plated          		 Ø 3 - 52 mm 30 x 30 0.46 kg



          Included Items
          • (1) Vice grip
          • (1) Pair of jaws

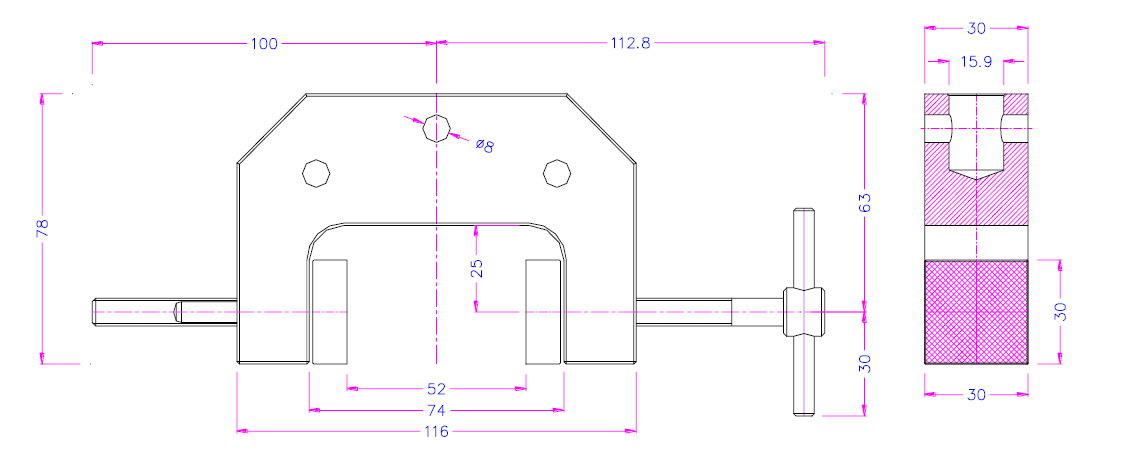

          Dimensions - mm
