Tension Testing Scissor Grips 5kN, SG11-5, are self-tightening and self-aligning grips. The initial clamping force is provided by spring tension. The larger the opening width the stronger the grips tightens the specimen. The jaws automatically tighten during force application.
Scissor Grips are recommended for use with materials that have varying cross-sectional shapes, as they provide a more even distribution of stress. These grips are commonly used in tensile testing situations involving stress concentration-sensitive materials, as they apply force over a wider surface area, reducing the chance of localized stress and promoting reliable test outcomes.
Specifications
- Force capacity: 1,000 lbF [5 kN]
- Jaw opening: 0-0.74 in [0-19 mm]
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Weight: 2.3 lbs [1.04 kg]
- Body: Stainless Steel
- Jaws
- Pyramid serrated jaws 1.2 x 45°
- 20 mm height x 50 mm width
- Hardened steel 58 HRC
- Temperature Range: -70 up to +130°C
- Scope of delivery: 1 grip with jaws
Dimensions-mm

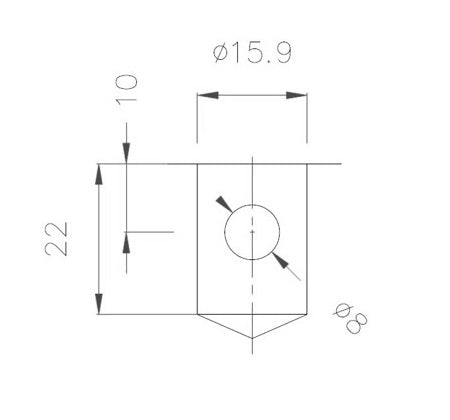

Connection Dimensions
