These vice grips are used in tension testing on force test stands and material test systems. This grip has a 5 kN (1,000 lbF) load capacity and able to open to maximum of 50 mm.
Jaws can be offset for asymmetrical test specimens. A T-handle is on both sides to easily adjust jaw positions.
Grip is priced individually.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Specifications
- Clamping Force: 5 kN [1,000 lbF]
- Jaw Max Opening: 50 mm
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Body: Aluminum, anodized
- Temperature Range: 0 to +70°C
| Model | Grip | Included Jaws | Weight |
| VG1000-S50-P50 | VG1000 | 30 x 50 mm pyramid jaws | 3.6 lbs |
| VG1000-S50-R50 | VG1000 | 30 x 50 mm rubber faced jaws | 3.6 lbs |
| VG1000-S50-V5 | VG1000 | v-jaws for round samples 5-50 mm dia. | 3.6 lbs |
| VG1000-S50-P100 | VG1000 | 30 x 100 mm pyramid jaws | 4.1 lbs |
| VG1000-S50-R100 | VG1000 | 30 x 100 mm rubber faced jaws | 4.1 lbs |
Included Items
- (1) Vice grip
- (1) Pair of jaws

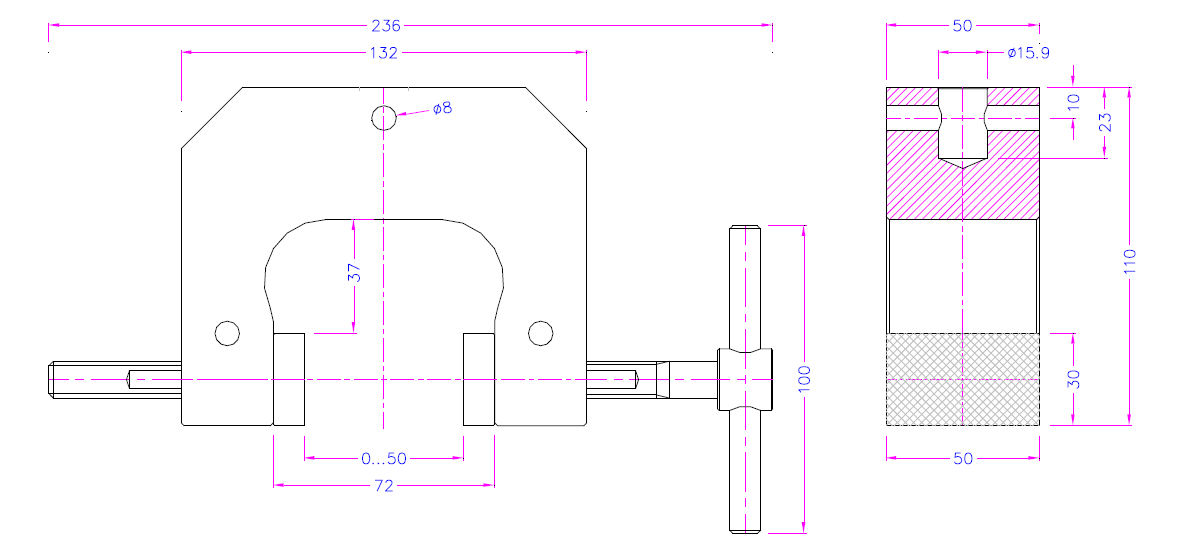

Dimensions-mm

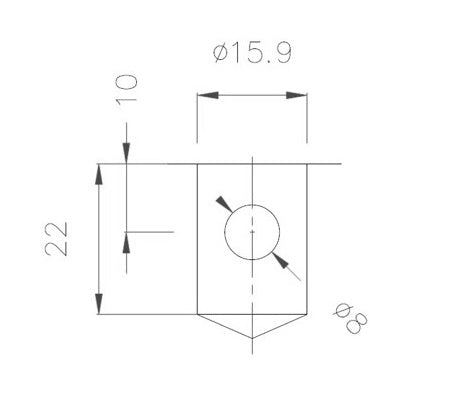

Connection Dimensions
