This wedge grips can be used in a variety of tensile testing applications including testing of wires, plastics, metals, elastomers.
It includes pyramid jaw faces and can be used up to 10 kN force. This grip has a locking function for safe sample Insertion and removal. Self-tightening wedge design eliminates slippage.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments
,
Chatillon
, and
Mark-10
equipment. We also sell these brands of
test stands
,
load cells
, and
force gauges
to use with our grips and fixtures. Adapters
are available to accommodate other connection types and sizes.
Specifications
- Force capacity: 2,000 lbF [10 kN]
- Jaw opening: 0-0.4 in [0-10 mm]
- Connection: 5/8' female eye end [15.9 mm]
- Weight: 5.84 lbs
- Body: Steel
- Jaws
- Pyramid serrated jaws 1.2 x 45°
- 40 mm height x 34 mm width
- Hardened steel 58 HRC
- Scope of delivery: 1 grip with jaws
Included Items
- (1) Grip
- (1) Pair of jaws

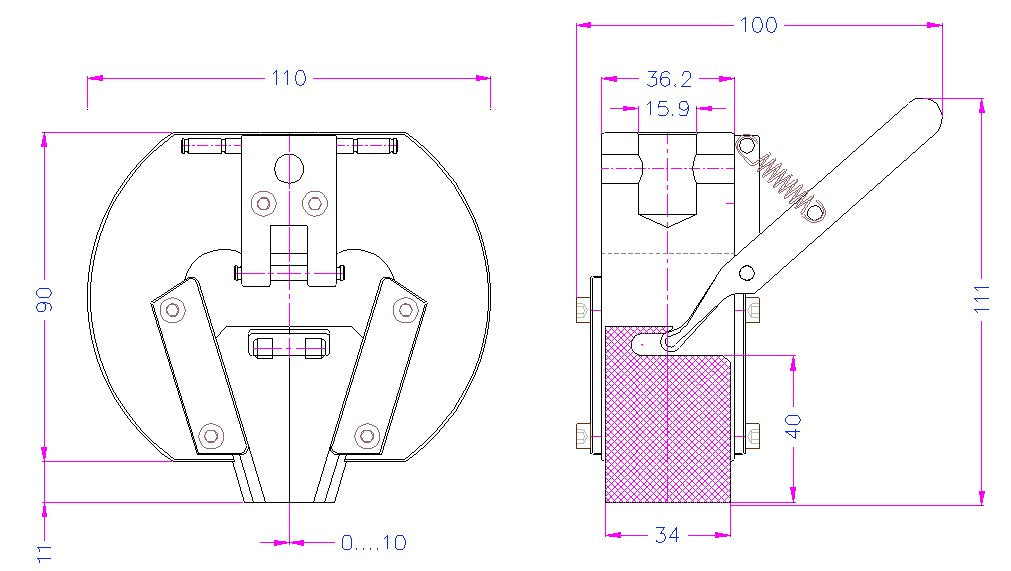

Dimensions-mm
