Series FS06 force sensors measure tension and compression forces. Designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN.
With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter AC1083 required).
Ranges are available from 50 to 500 lbF [250 N to 2.5 kN].
Compatible test stands:
- Series F EasyMESUR F105-EM, F305-EM, F505-EM, and F505H-EM
- Series F IntelliMESUR F105-IM(T), F305-IM(T), F505-IM(T), and F505H-IM(T)
Features
- Measure tension and compression force
- Suitable for larger and heavier grips and fixtures
- Member of the Plug & Test® family of interchangeable sensors and indicators (optional adapter AC1083 required)
- NIST-traceable certificate of calibration with data is included
- Warranty: 3 years
Specifications
- Accuracy: ± 0.15% of full scale + indicator or test frame
- Safe Overload: 150% of full scale
- Weight:
- FS06-50 – FS06-200: 1.7 lb [0.8 kg]
- FS06-300 – FS06-500: 1.9 lb [0.9 kg]
- Shipping weight:
- FS06-50 – FS06-200: 2.5 lb [1.1 kg]
- FS06-300 – FS06-500: 2.7 lb [1.2 kg]
Capacity x Resolution
| Capacity x Resolution | ||||||
| Model | lbF | ozF | gF | kgF | N | kN |
| FS06-50 | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 25 x 0.01 | 250 x 0.1 | - |
| FS06-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 50 x 0.02 | 500 x 0.2 | - |
| FS06-200 | 200 x 0.1 | 3200 x 2 | - | 100 x 0.05 | 1000 x 0.5 | 1 x 0.0005 |
| FS06-300 | 300 x 0.2 | 4800 x 5 | - | 150 x 0.1 | 1500 x 1 | 1.5 x 0.001 |
| FS06-500 | 500 x 0.2 | 8000 x 5 | - | 250 x 0.1 | 2500 x 1 | 2.5 x 0.001 |

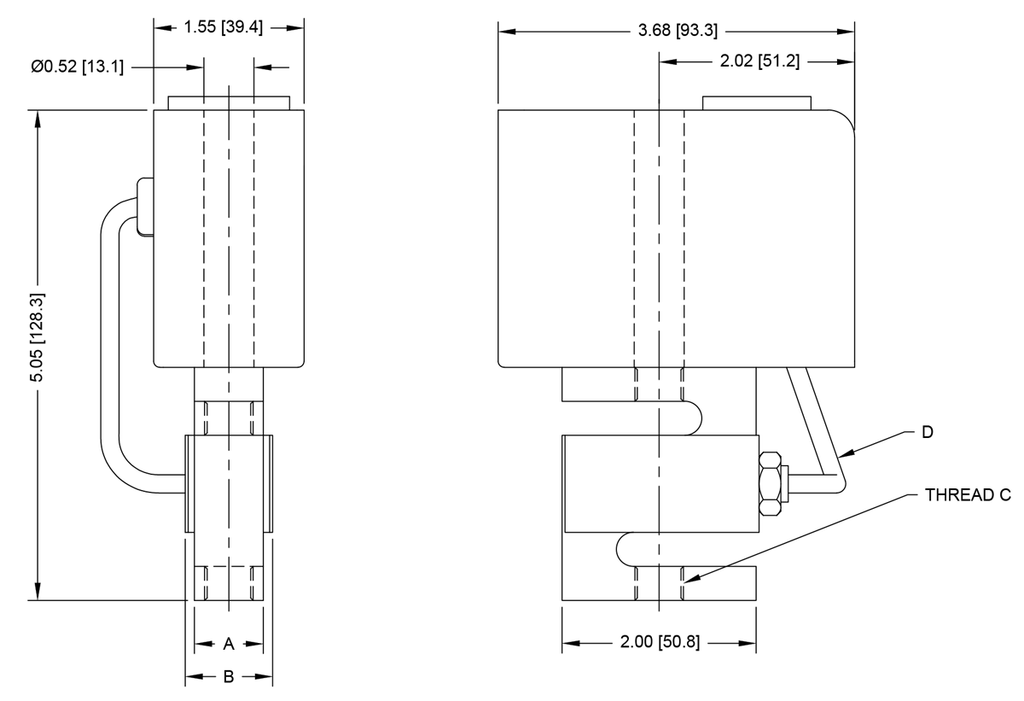

Dimensions - in [mm]
| Model No. | A | B | THREAD C | D |
| FS06-50 |
0.46
[11.7] |
0.71
[18.0] |
1/4-28 UNF
|
6.00
[152.4] |
| FS06-100 | ||||
| FS06-200 | ||||
| FS06-300 |
0.9
[22.6] |
1.1
[27.9] |
1/2-20 UNF
|
|
| FS06-500 |
