Puncture Fixture Glove Penetration EN388 ANSI-105:2005

2368.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Puncture fixture according to DIN EN388 and ANSI-105:2005 to test protective gloves. Probe has a 4.5 mm diameter, 30 degree angle to a rounded point. Fixture hole diameter is 20 mm.

          This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on  Lloyd Instruments ,  Chatillon , and  Mark-10  equipment. We also sell these brands of  test stands ,  load cells , and  force gauges  to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
          Specifications
          • Force capacity: 20 kN
          • Connection : 15.9 mm (5/8') female eye end -  Adapters for other sizes
          • Material: Steel nickel plated
          • Temperature range: 0°C - +70°C
          • Weight: 4.75 kg
          Included Items
          • Fixture
          • Probe

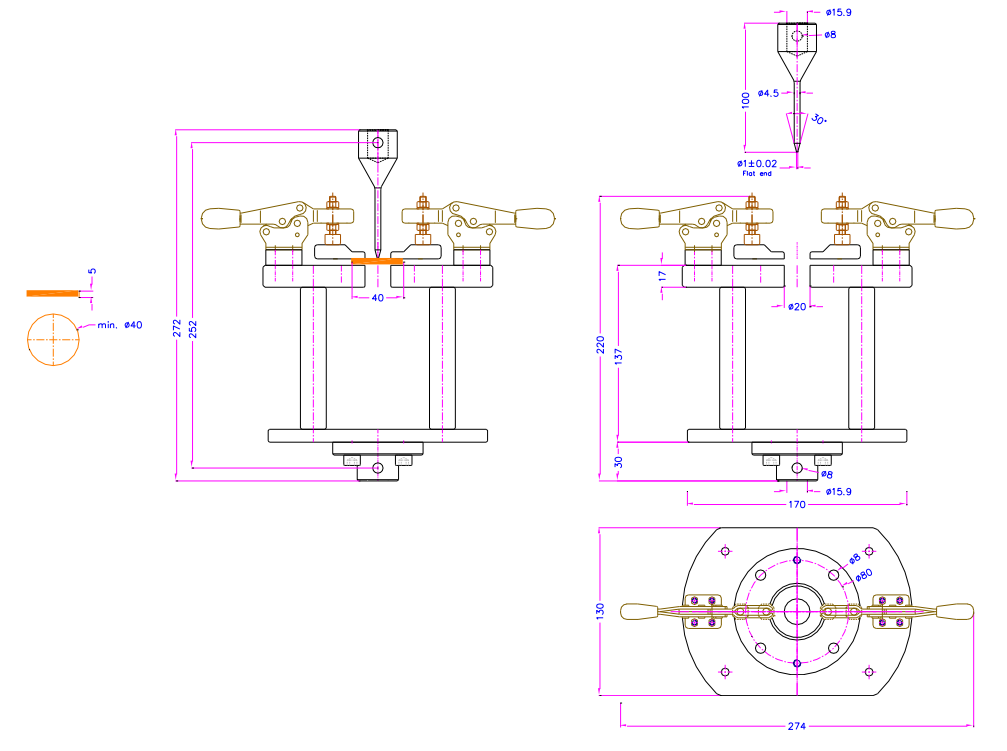

          Dimensions - mm

          Dimensional drawing for EN388 puncture fixture
