The Puncture Fixture in accordance to DIN EN14477, is an essential tool for measuring puncture resistance in films, commonly utilized in flexible packaging and battery separator film testing. Puncture resistance is a crucial aspect of packaging and materials testing, allowing professionals to accurately determine the strength and durability of different materials when faced with potential puncturing from sharp or pointed objects.
This fixture is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments
,
Chatillon
, and
Mark-10
equipment. We also sell these brands of
test stands
,
load cells
, and
force gauges
to use with our grips and fixtures. Adapters
are available to accommodate other connection types and sizes.
Applications
- Flexible packaging
- Battery separator film
Specifications
- Force capacity: 10 kN
- Opening: 10 mm Ø
- Probe: 0.8 mm Ø
- Max specimen thickness: 3 mm
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Material: Steel nickel plated
-
Temperature range: 0°C - +70°C
- Weight: 2.1 kg
Included Items
- (1) Fixture
- (1) Probe with needle holder and needle

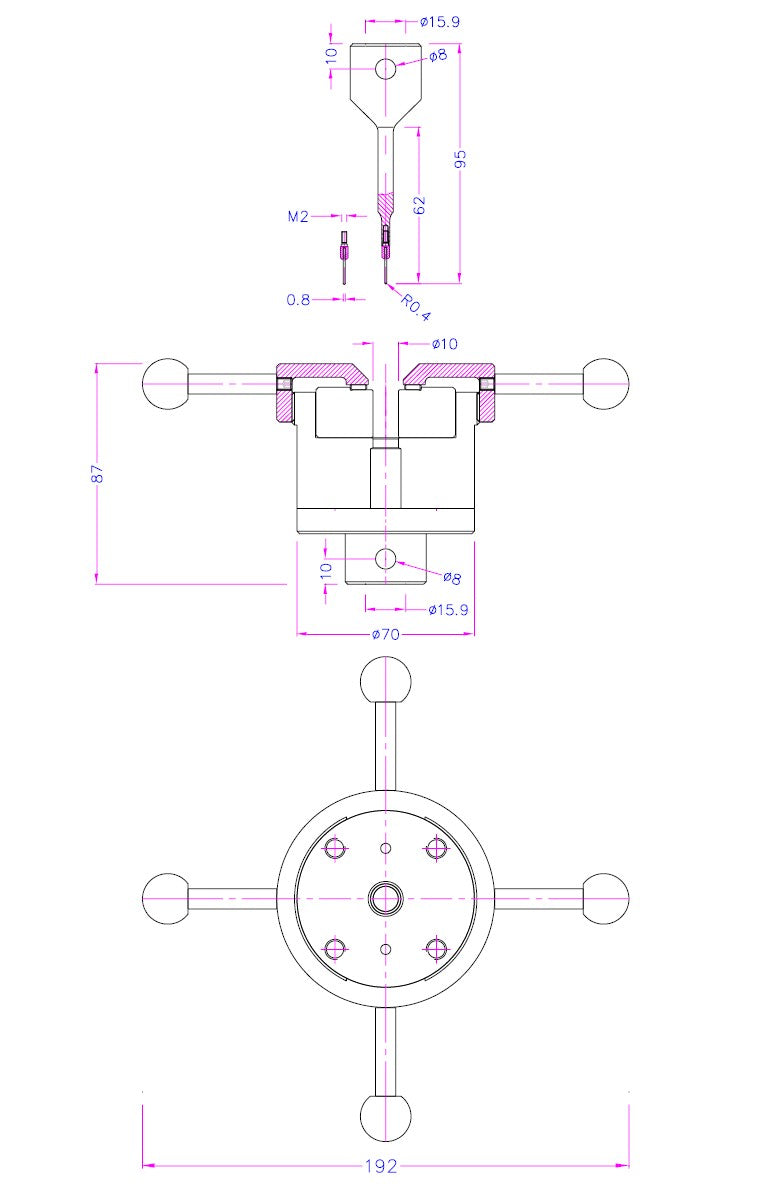

Dimensions - mm
