Small universal pneumatic grips with quick pneumatic clamping action to test foils, textiles, paper, etc. Manually adjustable counter jaw.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Specifications
- Clamping Force: 250 lbF [1.2 kN] at 7 bar
- Jaw opening: 0-0.39 in [0-10 mm]
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Weight: 2.5 lbs [1.15 kg]
- Body: Aluminum
- Jaw Choices:
- Pyramid jaws: 30 x 30 mm
- Rubber coated jaws: 30 x 30 mm
- Wave jaws: 30 x 30 mm
- V-jaws: 30 x 30 mm
- Temperature Range: 0 to +70°C
Included Items
- (1) Pneumatic grip
- (1) Pair of jaws
- (1) Micro-switch and tubing. (Other types of activation including foot-pedals are available upon request).

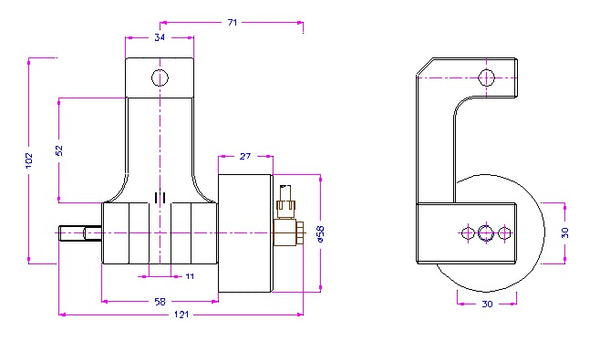

Dimensions-mm

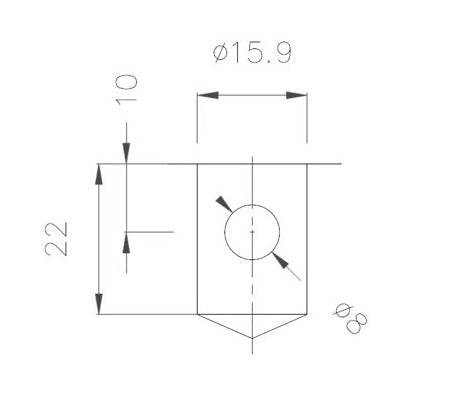

Connection Dimensions
