Symmetric dual clamping action for self-centering of the specimen which allows quick and easy loading of sample. Micro-switch activated pneumatic grip.
Includes 2 sets of rods for adjusting opening size; samples 0-6 mm thick or 4-11 mm thickness.
Grip is priced individually.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments,
Chatillon, and
Mark-10 equipment. We also sell these brands of
test stands,
load cells, and
force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.
Specifications
- Clamping Force: 2.2 kN / 7 bar - max 5 kN / 16 bar
- Stroke: 6 mm
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Weight: 3.1 lbs [1.4 kg]
- Body: Aluminum, anodized
- Jaws options:
- Pyramid jaws: 30 x 50 mm
- Rubber jaws: 30 x 50 mm
- Wave jaws: 30 x 50 mm
- Temperature Range: 0 to +70°C
Included Items
- (1) Pneumatic grip
- (1) Pair of jaws
- (1) Micro-switch and tubing. (Other types of activation including foot-pedals are available upon request).

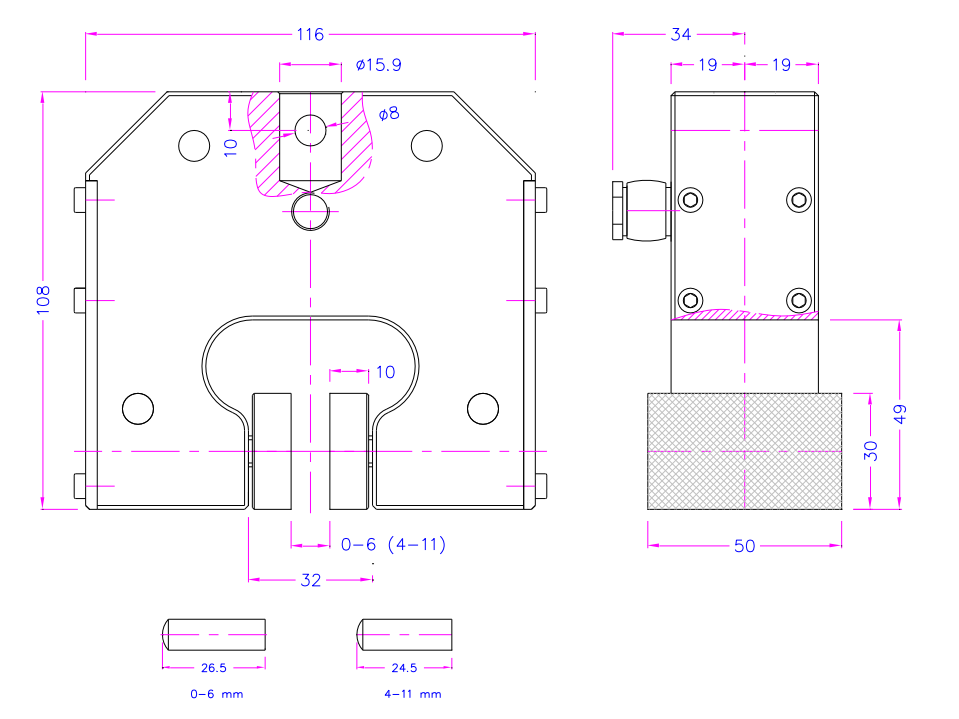

Dimensions-mm

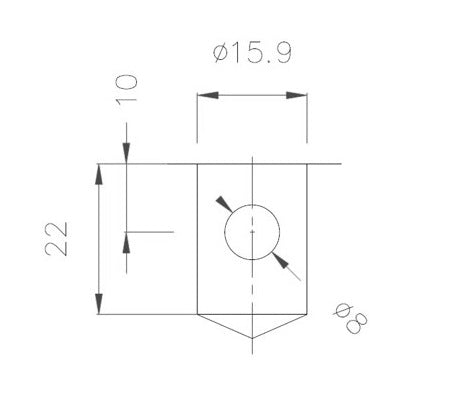

Connection Dimensions
