VG20 Pincher (Pincer) grips are ideal for removing components from a printed circuit board or securing small pull tabs when peeling a lid off of packaging. Suitable for small forces, pull off tests, fiber, filaments, adhesive bonds. Pyramid/Serrated grip faces prevent slippage during testing.
The side action vice clamping allows for higher clamping force on specimen compared to a spring style of pincher grip. This style of clamping also allows for more control of the clamping force.
Specifications
- Force capacity: 100 N (20 lbF)
- Connection: 5/8' [15.9 mm] female eye end with 8 mm pin hole
- Opening: 0 - 3 mm
- Material: Hardened steel, nickel-coated
- Weight: 68 g (0.15 lbs)
- Temperature Range: 0 … +180°C
- Jaw Surface: Pyramid, 5 x 6 mm surface
- Includes 1 grip with Af159 adapter

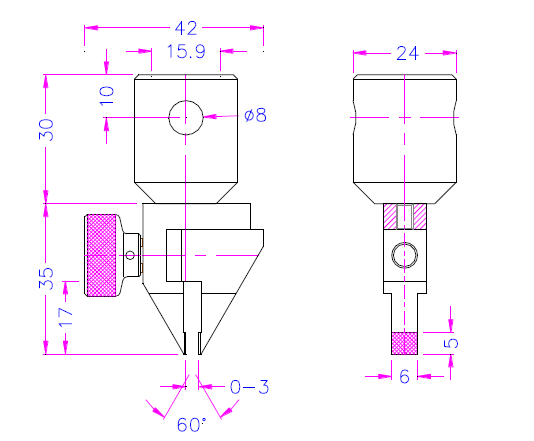

Dimensions - mm
