Peel Fixture to ISO-IEC10373-1, Test ID Card, Credit Cards

90 degree peel test fixture for testing identification cards, credit cards, and loyalty cards. Fixtures designed to standards ISO/IEC 10373-1 and ISO/IEC 7810.

Specifications

• 6 rollers x 10 mm Ø, 1 mm distance between rollers, V2A stainless steel
• Force capacity: 2 kN
• Connection fitting: 5/8' female eye end (15.9 mm)
• Adapters for other sizes
• Body: Steel, nickel-plated
• Temperature range: 0 – 70 °C
• Weight: 2.7 kg

Included Items

• Lower fixture for peel card testing

*Upper grip is sold separately: G1062 miniature wedge grip, GF-11 miniature wedge grip, Small pincher grip with chain.

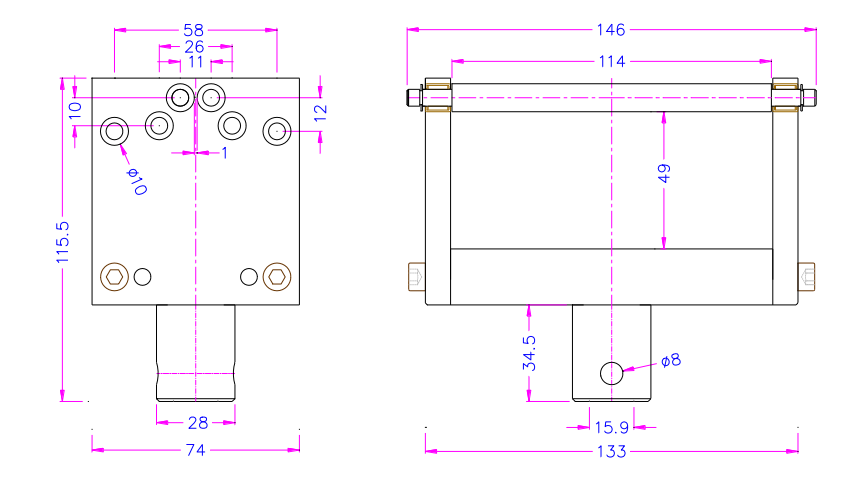

Dimensions - mm

Dimensions for standard fixture connection
