The PCE Hydraulic Force Gauge with hose is available in 1 kN, 2.5 kN, 10 kN, and 25 kN capacities. Max force readings are held by the integrated drag pointer.
This hydraulic load cell has a 27 mm ring opening designed for applications with guide rails, shafts and also bolts of, for example, a hydraulic press. The insertable punch adapter adds flexibility to this transducer so it can be converted from a ring force measuring device to a compression force measuring device in a matter of seconds.
Features
- Stainless steel force gauge
- Measurement of static compressive forces
- Ring force transducer and pressure adapter
- Screw mount for axial assembly
- Integrated drag pointer for capturing peak
- Incl. ISO calibration certificate
Specifications
- Accuracy: ±2.5% of FS
- Hydraulic Hose: 100 cm
- Inner ring diameter: 27 mm
- Operating Conditions: 0°C to +50°C, 20% to 90% RH non-condensing
Models
| Model | Capacity | Units | Resolution |
| PCE-HFG-1KN-E100 | 1,000 N | N | 20 N |
| PCE-HFG-2.5KN-E100 | 2,500 N | N | 100 N |
| PCE-HFG-10KN-E100 | 10 kN | kN | 200 N |
| PCE-HFG-25KN-E100 | 25 kN | kN | 1000 N |

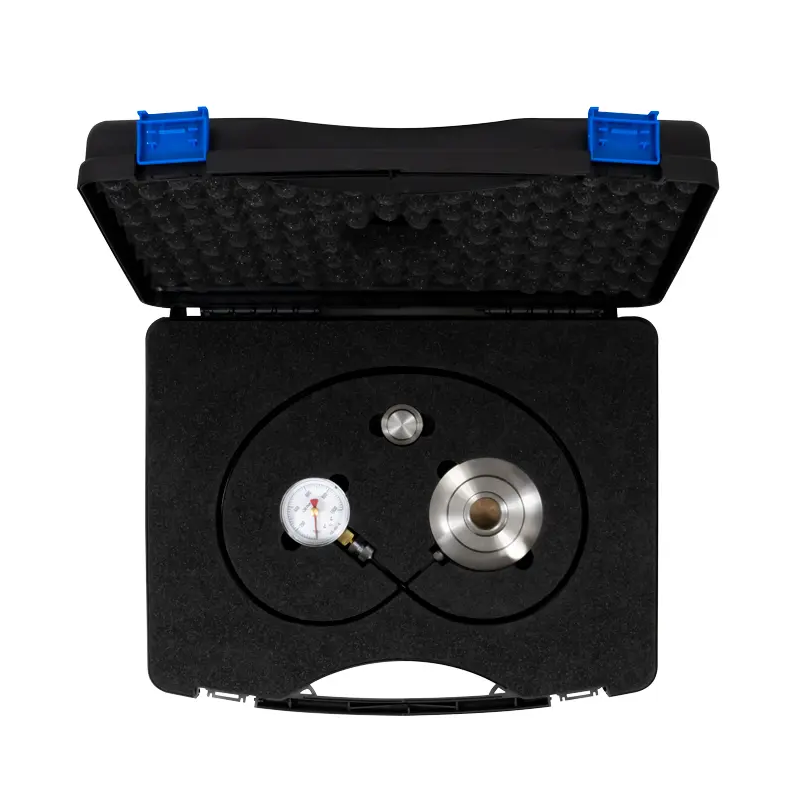

Included Items
- (1) Hydraulic force gauge with 100 cm hose
- (1) Instrument case
- (1) Compression adapter
- (1) ISO calibration certificate

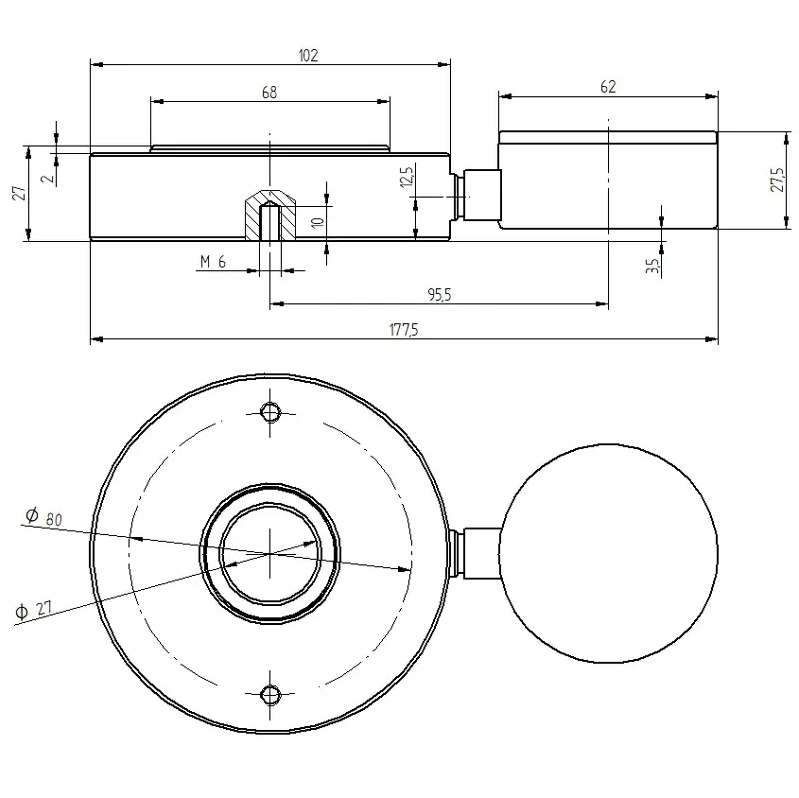

Dimensions - mm
