The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
Features
Applications
- Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
- Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
- AC adapter (included)
Communication
- RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction

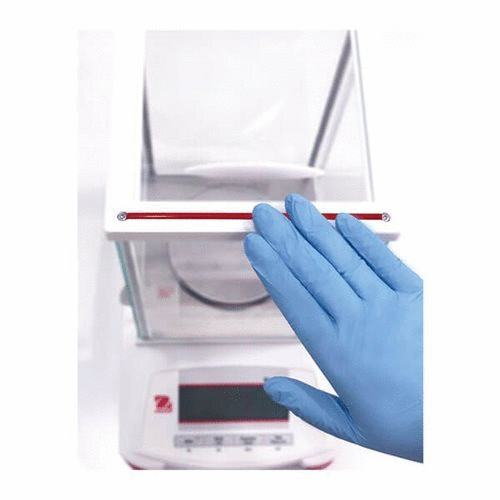

- Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
- User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
Specifications
| Maximum Capacity | 160 g |
| Readability | 0.001 g |
| Pan Size | 120 mm |
| Internal Calibration | Not Applicable |
| Draftshield | Included |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | RS232; USB |
| Dimensions | 309 mm x 321 mm x 209 mm |
| Display | 2-Line LCD with Backlight |
| In-use cover | Included |
| Legal for Trade | No |
| Minimum Weight (USP, 0.1%, typical) | 2 g |
| Minimum Weight | 0.82 g |
| Net Weight | 10 lb (4.5 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Stabilization Time | 2 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Carat; Custom; Grain; Gram; Hong Kong Tael; Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Singapore Tael; Taiwan Tael; Tical; Tola |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing; operability guaranteed between 41°F and 104°F (10°C – 30°C, 80%RH, non-condensing; operability guaranteed between 5°C and 40°C) |
Documents
Pioneer PX Data Sheet
Pioneer PX Manual
