Suitable for both tension and compression applications, the Mark-10 Series R08 Tension / Compression Force Sensors MR08 have a capacities of up to 10,000 lbF (50 kN). With threaded rods on both ends, these sensors offer versatile mounting options.
Compatible with Mark-10 indicators (sold separately) M3i, M5i, M7i, through unique Plug & Test® technology.
Features
- Member of the Plug & Test® family of interchangeable sensors and indicators
- Threaded rods on both ends
- 17-4PH stainless steel / IP64 design withstands harsh environments
- NIST-traceable certificate of calibration with data is included.
- Warranty: 3 years
Specifications
- Accuracy: ±0.5% of full scale + indicator
- Weight:
- MR08-2000: 0.3 lb [0.1 kg]
- MR08-5000: 0.4 lb [0.1 kg]
- MR08-10000:0.6 lb [0.2 kg]
- Shipping weight (all models): 2 lb [0.9 kg]
- HS code: MR08 (all models): 9024900000
- ECCN: EAR99
- Country of origin: USA
Capacity x Resolution with M7I & M5I Indicators
| Capacity x Resolution | ||||||
| Model | lbF | ozF | gF | kgF | N | kN |
| MR08-2000 | 2000 x 1 | 32000 x 20 | - | 1000 x 0.5 | 10000 x 5 | 10 x 0.005 |
| MR08-5000 | 5000 x 2 | - | - | 2500 x 1 | 25000 x 10 | 25 x 0.01 |
| MR08-10000 | 10000 x 5 | - | - | 5000 x 2 | 50000 x 25 | 50 x 0.02 |
Capacity x Resolution with M3I Indicator
| Capacity x Resolution | ||||
| Model | lbF | kgF | N | kN |
| MR08-2000 | 2000 x 2 | 1000 x 1 | 10000 x 10 | - |
| MR08-5000 | 5000 x 5 | 2500 x 2 | - | 25 x 0.02 |
| MR08-10000 | 10000 x 10 | 5000 x 5 | - | 50 x 0.05 |

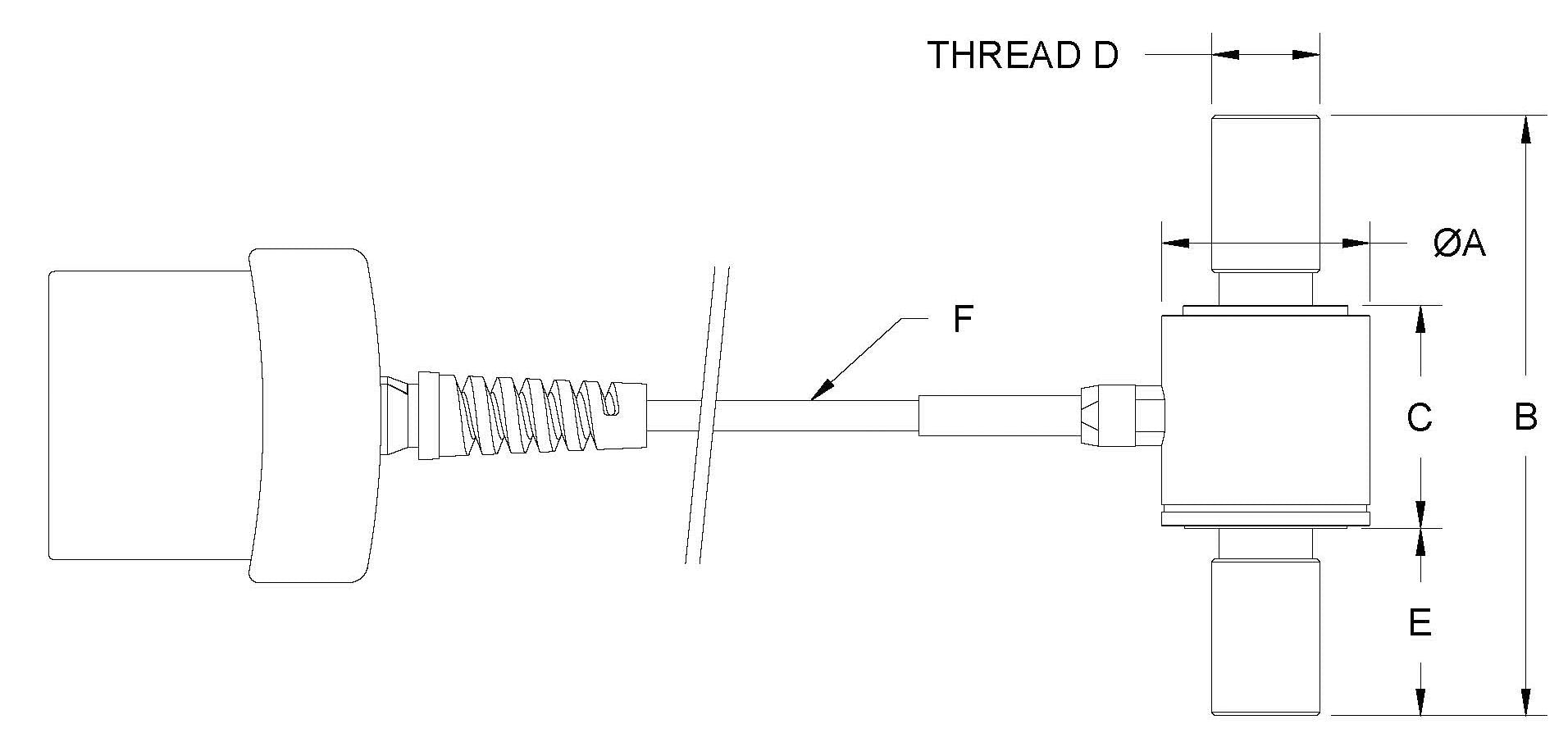

Dimensions - in[mm]
| Model | A | B | C | D | E | F |
| MR08-2000 | 0.96 [24.4] | 1.50 [38.1] | 0.72 [18.3] | 3/8-24 UNF | 0.39 [9.9] |
10 ft [3 m]
|
| MR08-5000 |
2.77 [70.4]
|
1.03 [33.0]
|
1/2-20 UNF |
0.87 [22.1]
|
||
| MR08-10000 | 1.11 [28.2] | 3/4-16 UNF |
