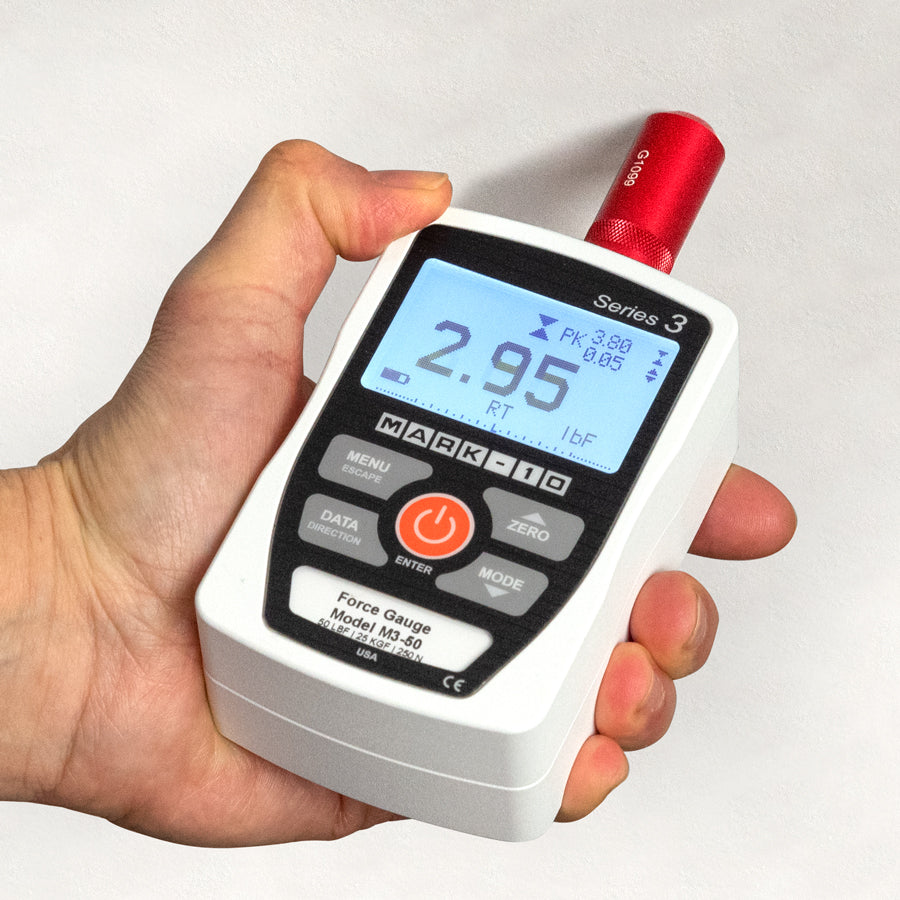

The G1099 Puncture Fixture is designed for puncturing gypsum board and other materials to determine puncture resistance. Compatible with all current Mark-10 force gauges. For added safety, the spring-loaded needle retracts when not actively pushed into a material.
Features
- Test the puncture force of gypsum board and other materials.

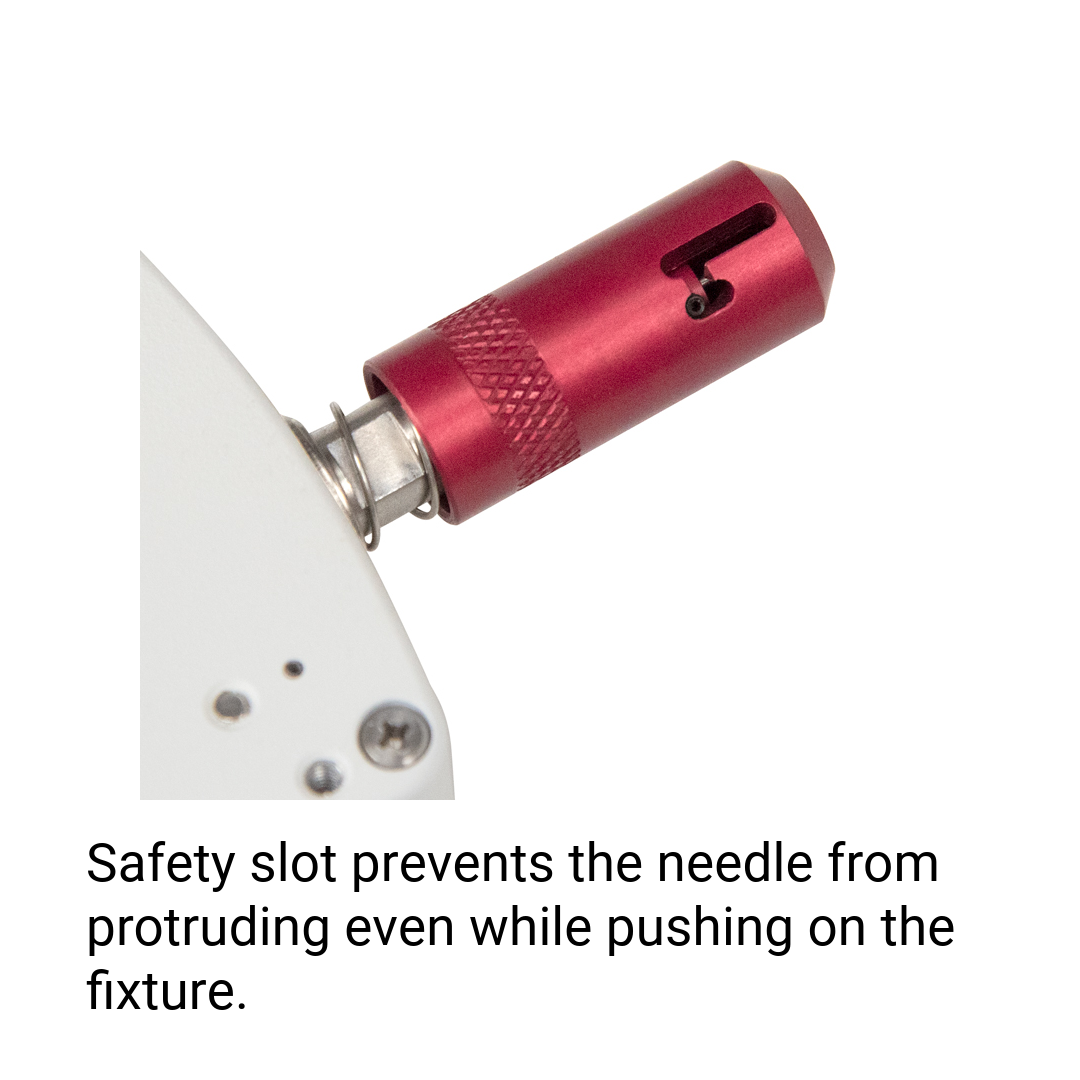

- Spring-loaded aluminum housing ensures safe usage.
- Compatible with all Mark-10 force gauges.
Specifications
- Capacity: 20 lbF [100 N]
- Weight: 0.04 lb [0.02 kg]
- Shipping Weight: 1 lb [0.5 kg]
- HS code: 9024800000
- ECCN: EAR99
- Country of origin: USA
Included Items
- (1) Puncture Fixture

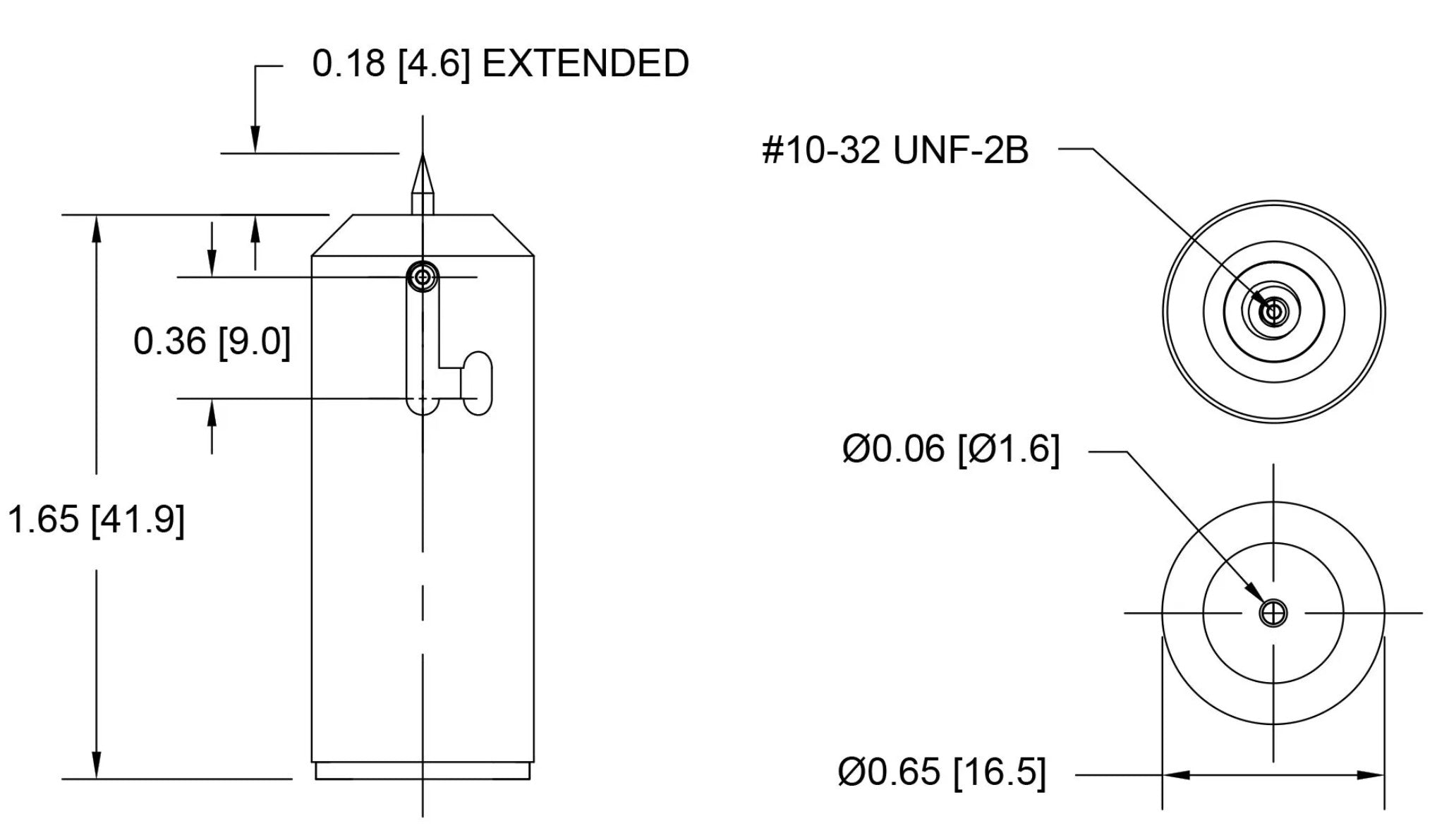

Dimensions - in[mm]
