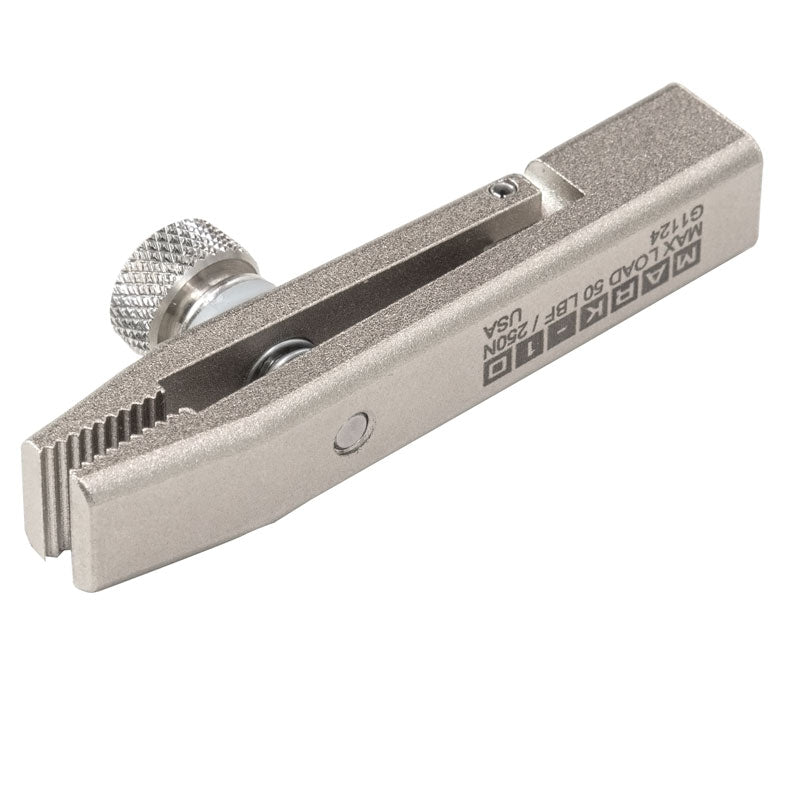

The Mark-10 Miniature Film and Paper Peel Grip G1124 is ideal for tensile and peel testing of film, paper, and other thin materials. With adjustable serrated jaws, it can securely hold samples up to 0.5 in (12.7 mm) wide and withstand 50 lbF (250N) of force. Combine it with a force sensor and a test frame for a complete testing system.
Specifications
- Force capacity: 250 N (50 lbF)
- Opening: 0 - 3.8 mm (0-0.15 in)
- Weight: 0.04 kg (0.08 lb)
- Jaw Type: Serrated
Included Items
- (1) Grip
- (1) #10-32 M/M stud with jam nuts

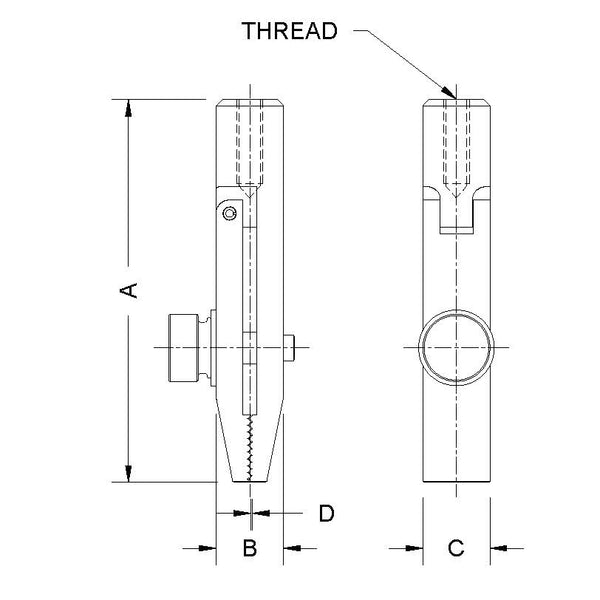

Dimensions - mm
| A | B | C | D | THREAD |
| 2.85 in [72.4 mm] |
0.5 in [12.7 mm] |
0.5 in [12.7 mm] |
0 - 0.15 in [0 - 3.8 mm] |
#10-32 UNF |
