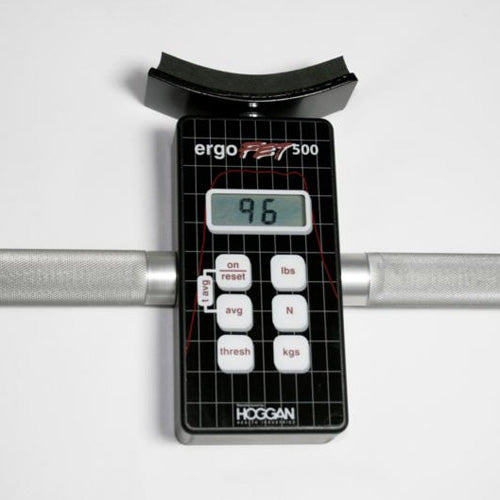

Hoggan ErgoFET 500 Ergonomic Force Gauge Kit

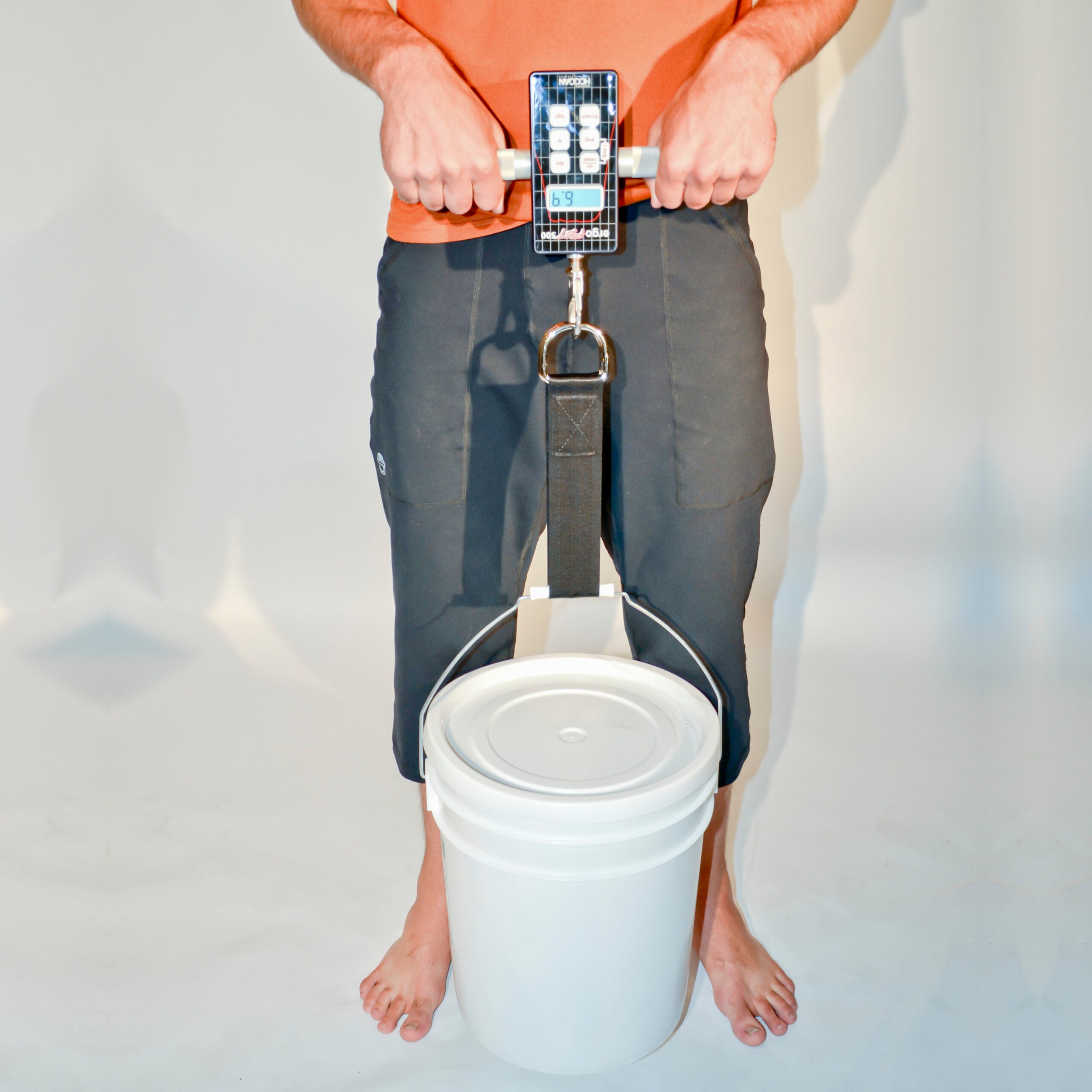

The HOGGAN wireless ErgoFET™ 500 is a digital force gauge that allows professionals in ergonomics, engineering, and safety to objectively assess and quantify human and product performance. This is beneficial for improving product quality and functionality, as well as increasing manufacturing efficiency and reducing costs associated with repetitive motion injuries and cycle time. The wireless ErgoFET™ 500 is perfect for job site and ergonomic analysis, NIOSH (The National Institute for Occupational Safety and Health) static strength testing, or any force measurement needs at the job site.

The wireless enabled ErgoFET™ 500 eliminates cables, cords, and wires. The ErgoFET™ 500 force gauge is a cost-effective, durable, and easy to use push and pull force gauge designed for a wide variety of force measurement applications. It measures peak force and timed 3-second average force when required. With two operating test modes, and four selectable threshold settings, the ErgoFET™ 500 is a highly versatile force gauge for any industrial measurement application. Available FET Data Collection software is compatible with Windows operating systems XP or newer.

Features and Specifications

• Force Capacity: 500 lbF (Push and Pull)
• Resolution: 0.2 lbF

• Units of measure: pounds (lbs.), Newtons (N), or kilogram-force (kgf)
• Accuracy: 1% of reading
• 4 selectable threshold settings – 2 low and 2 high
• Two Operation Test Modes:
  • Untimed Test Mode: Record and display peak force and average force
  • Timed (Static Strength Test) Mode: Record and display peak force and a 3 second average force over last 3 seconds of five second test
• Power: Uses rechargeable lithium ion battery.
• Self-activating “sleep” mode after 3 minutes of non-use to extend battery life
• Optional FET Data Collection Software Automatically Tracks and Analyzes Test Data through a wireless connection.

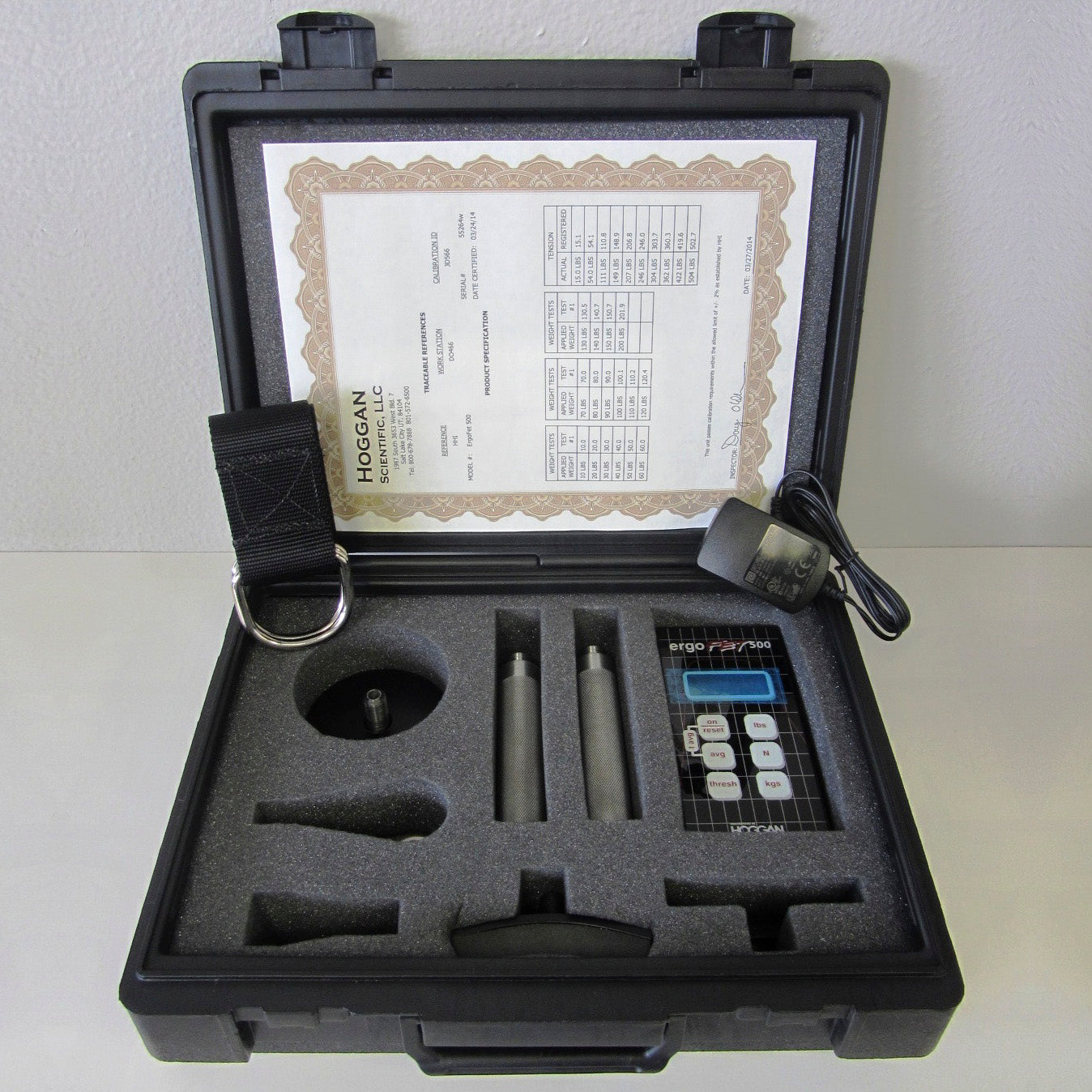

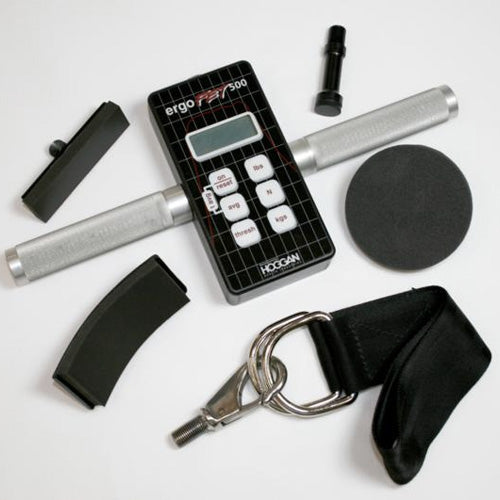

Included Items

• Wireless ErgoFET™ 500
• (2) aluminum handles

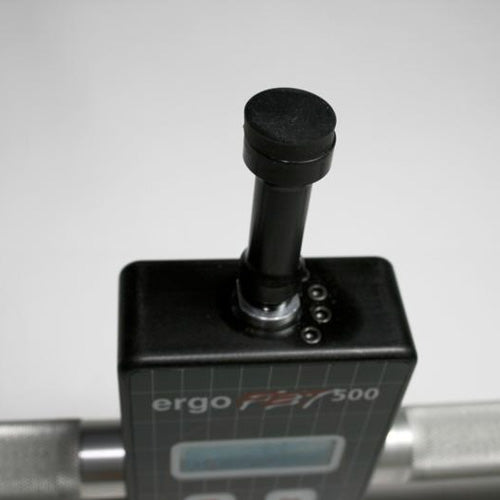

• Push attachments: flat pad, curved pad, and digit pad.

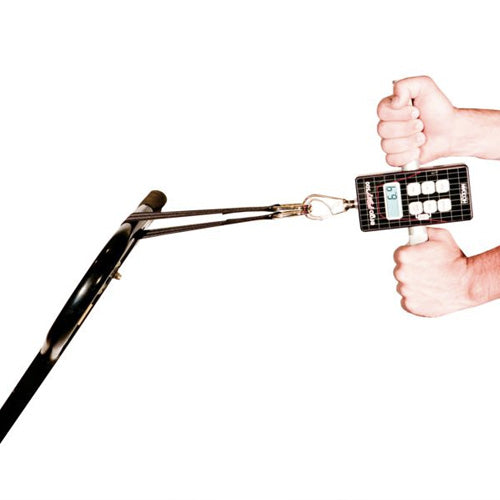

• Pull attachments include: snap hook, 16 inch strap with D rings
• Wall pack power supply
• Rechargeable lithium ion battery
• Calibration certificate
• Carrying case.
• 1 Year standard warranty
