Puncture test fixture to test index puncture resistance of geomembranes, geotextiles and related materials to ASTM-D4833. During the test, the specimen is secured between two plates of a ring clamp, and a probe applies force to the center of the geomembrane until it ruptures.
The fixture works with a universal testing machine to record the force and displacement during the test. This ensures geomembranes meet quality standards for applications like landfill liners, containment systems, etc.
This fixture is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments
,
Chatillon
, and
Mark-10
equipment. We also sell these brands of
test stands
,
load cells
, and
force gauges
to use with our grips and fixtures. Adapters
are available to accommodate other connection types and sizes.
Specifications
- Force capacity: 20 kN
- Ring clamp attachment: Internal Ø: 45 ± 0.025 mm [1.772 ± 0.001 in.]. External Ø: 100 mm [3.937 in.]
- Probe: Ø 8 ± 0.1 mm [0.315 ± 0.004 in.]
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Material: Steel nickel plated
-
Temperature range: 0°C - +70°C
- Weight: 3.3 kg bottom part incl. adapter; 0.68 kg probe
Included Items
- Fixture
- Probe

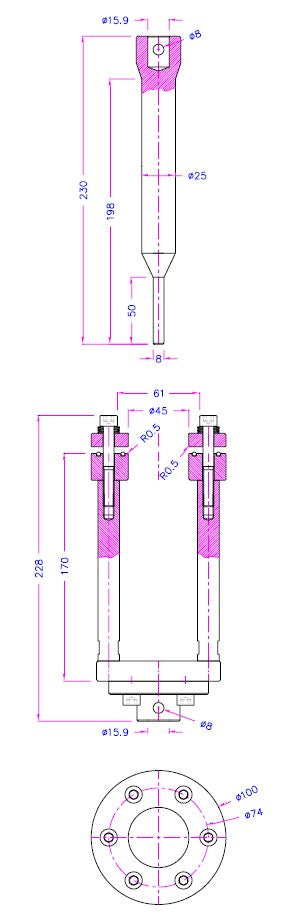

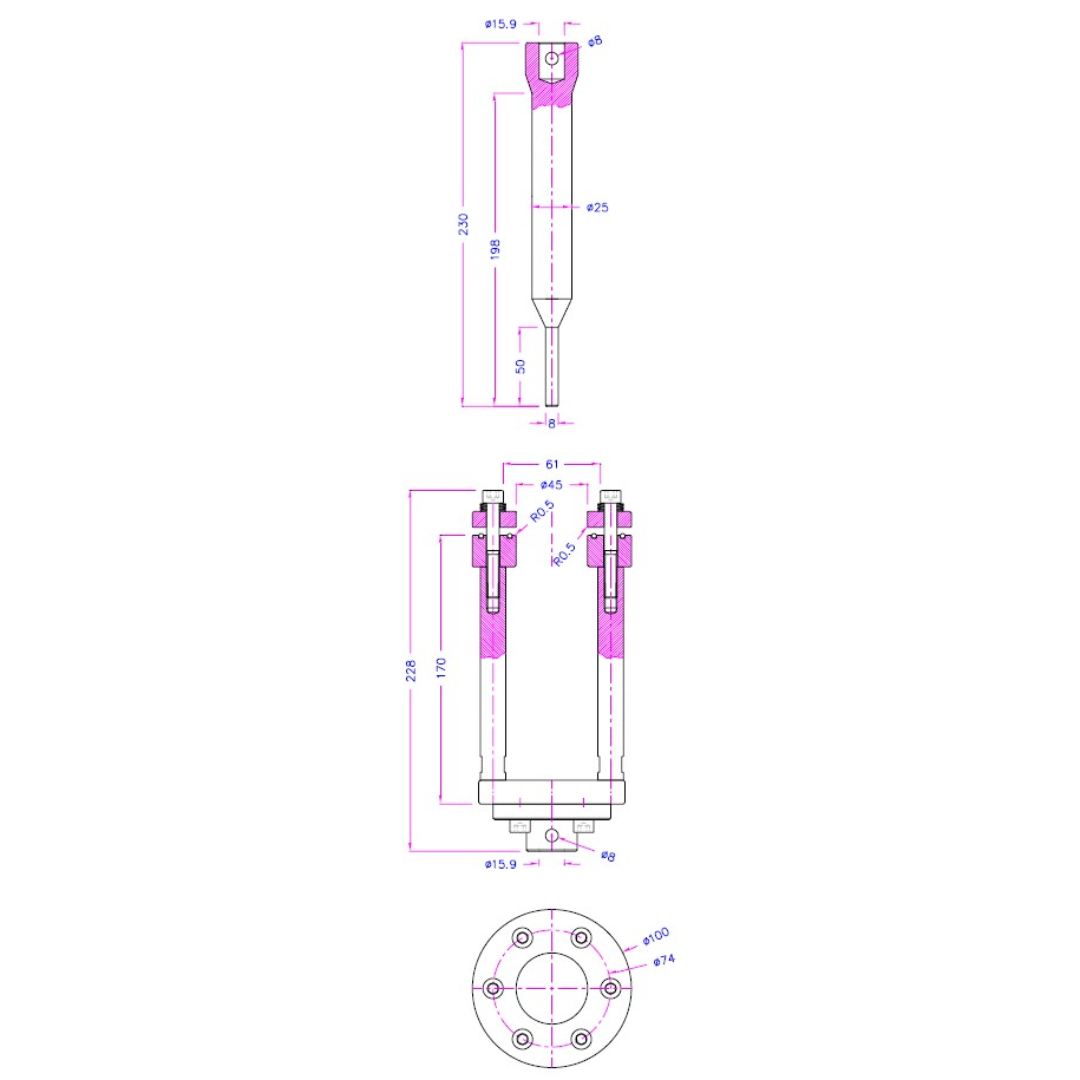

Dimensions - mm
