Flatwise Tensile Strength Adhesion Fixture

1948.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Fixture for testing flatwise tensile strength and tensile adhesion properties according to ASTM C297, ASTM D3354, ASTM D1623B, EN 1607, EN 2243-4, DIN 53292.

          This fixture is used to measures the strength of the bond between the core material and the face sheets of sandwich constructions by applying a tensile force perpendicular to the face of the sandwich. It is commonly used in aerospace and construction industries to assess the quality and durability of composite materials.

          This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on  Lloyd Instruments ,  Chatillon , and  Mark-10  equipment. We also sell these brands of  test stands ,  load cells , and  force gauges  to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.

          Specifications
          • Load Capacity: 20 kN
          • Temperature Range: -70 … +350°C
          • Carrier and Inserts: Steel, nickel-plated
          • Connection: 15.9 mm (5/8') female eye end - Adapters for other sizes
          Models and sizes
          Model Standard Insert Weight
          JLW113-25.4 ASTM C297, ASTM D1623B Carrier with 25.4 x 25.4 mm insert 1.88 kg
          JLW113-50 EN 1607, EN2243-4, DIN 53292 Carrier with 50 x 50 mm insert 2.02 kg
          JLW113-50.8 ASTM C297 Carrier with 50.8 x 50.8 mm insert 2.02 kg
          JLW113-76.2 ASTM C297 Carrier with 76.2 x 76.2 mm insert 2.28 kg
          JLW113-100 ASTM D3354, EN 1607 Carrier with 100 x 100 mm insert 2.61 kg

          Included Items
          • (2) Carriers
          • (2) Inserts

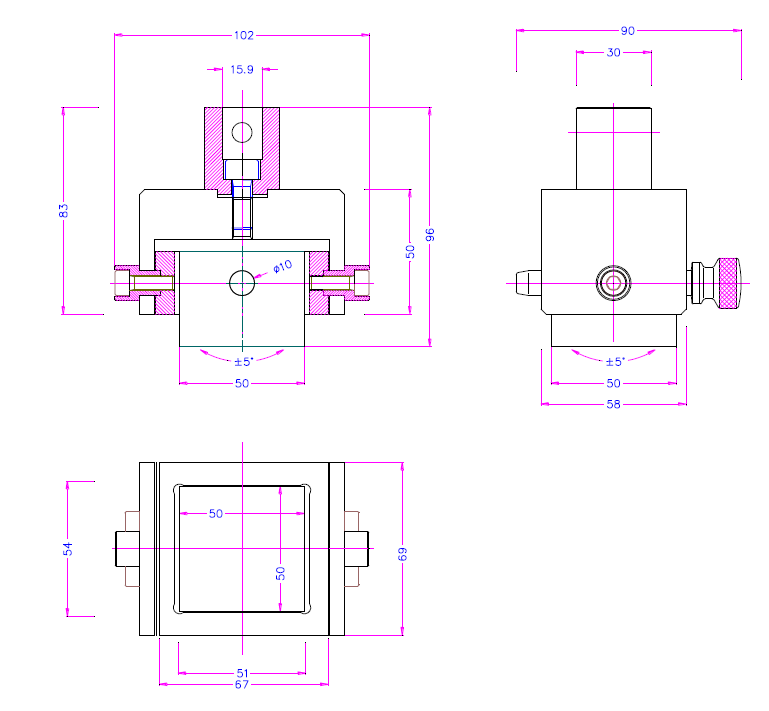

          Dimensions
