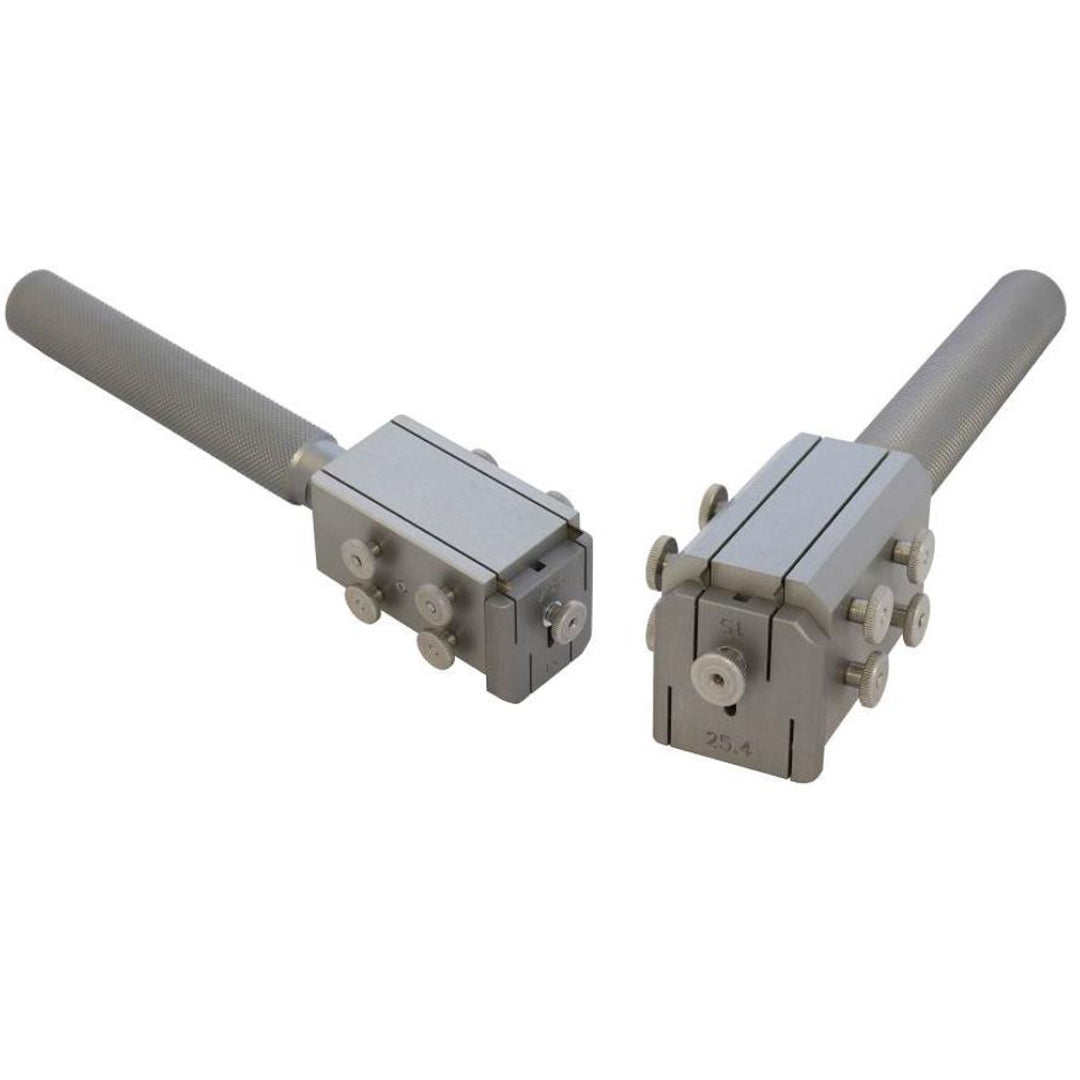

Handheld cutter for cutting uniform strip specimens of 15 mm and 25.4 mm wide; typical of peel tests on films and foils when to test according to ASTM-F88 and ASTM-D882.
Adjustable top cap slides to cover blades when not in use.
Specifications
- Cutting width: 15 mm and 25.4 mm depending on which side is used.
- Cutting depth: 3 mm
- 15 mm size cut tolerance: ±0.075 mm
- 25.4 mm size cut tolerance: ±0.125 mm
- Housing + handle: Aluminum
- Razor blades: Bimetal, TiN-covered
- Weight: 0.3 kg per cutter without razor blades
Included Items
- (1) Dual blade sample cutter 15 mm and 25.4 mm
- (4) Shatterproof Razor blades
Dimensions - mm
