Engineered for precision and ease of use, the Fiber & Filament Lightweight Spring Loaded Grip is ideal for tensile testing of delicate, fine-diameter materials such as optical fibers, wire, and filament.
Fits standard 5/8' eye ends—ready to use with Lloyd, Chatillon, and Mark-10 systems. Need the full setup? We carry compatible test stands, load cells, and force gauges. Using a different brand? Our adapters make it easy to connect these grips to virtually any testing system.
Features
- Spring-loaded jaws for consistent clamping force
- Lightweight aluminum design reduced weight
- Ideal for fine fibers, wires, and filaments
Specifications
- Force capacity: 20 N (5 lbF)
- Opening: 0 - 3.4 mm
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Material: Aluminum
- Weight: 98 g
- Temperature Range: 0 … +180°C
- Jaw Type: Pyramid, 10 mm x 10 mm surface
Included Items
- (1) Grip with pyramid jaws

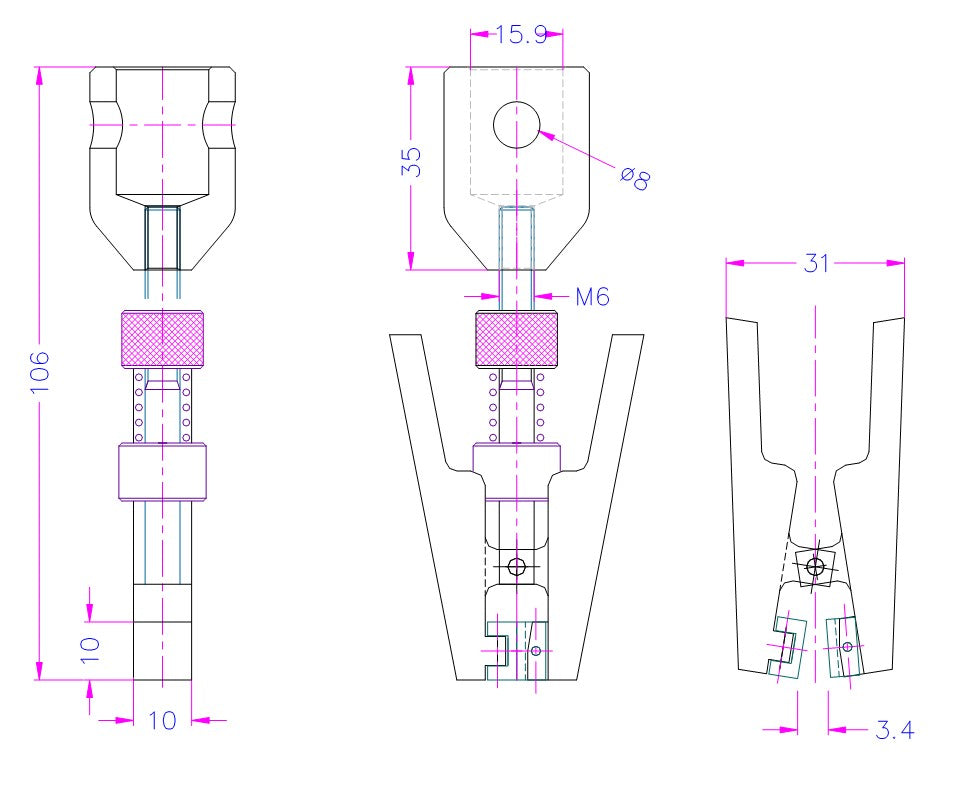

Dimensions - mm
