A158-2510, 5/8 Male Eye End to 25 mm Male Eye End

146.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          This Eye End Adapter, A158-2510, allows for efficient conversion from a 5/8' female eye end on a grip to a 25 mm eye end connection on the Shimadzu 10 kN and 20 kN test stands and load cells.

          Eye end adapters ensure a secure and reliable mounting of grips.

          Compatible with Shimadzu 10 kN and 20 kN test stands.

          Specifications
          • Connection: 5/8' (15.8 mm) male eye end, 8 mm pin
          • Connection: 25 mm male eye end, 10mm pin
          • Load Capacity: 20 kN
          • Material: Steel, nickel-plated
          Included Items
          • (1) Adapter
          • (2) Locking rings
          • (2) Clevis pins

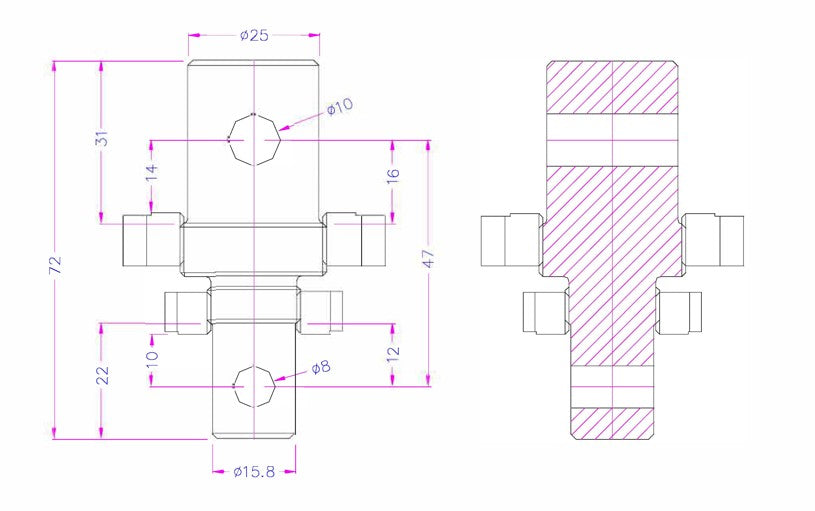

          Dimensions - mm
          Eye end dimensions for A158-2510
