ERG5-S100-P eccentric roller grips are self-tightening grips designed for testing wide flat samples, rubber, plastic film, plastic dumbbells, paper, cardboard, sheet metal and foils.
The roller on this grip has a crosscut surface.
Fits standard 5/8' eye ends—ready to use with Lloyd, Chatillon, and Mark-10 systems. Need the full setup? We carry compatible test stands, load cells, and force gauges. Using a different brand? Our adapters make it easy to connect these grips to virtually any testing system.
Features and Specifications
- Tensile Force Capacity: 5 kN [1000 lbF]
- Roller
- Surface: Pyramid [serrated] faced roller
- Diameter: 25 mm [2 in]
- Steel, nickel-plated
- Backstop Surface: Plain
- Max Sample Size
- Width: Up to 100 mm [4 in]
- Thickness: 0-7 mm
-
Connection : 15.9 mm (5/8') female eye end - Adapters for other sizes
- Body: Aluminium anodized
- Temperature range: 0 … +130°C
- Weight: 3 kg [6.6 lbs]
Included Items
- (1) Grip

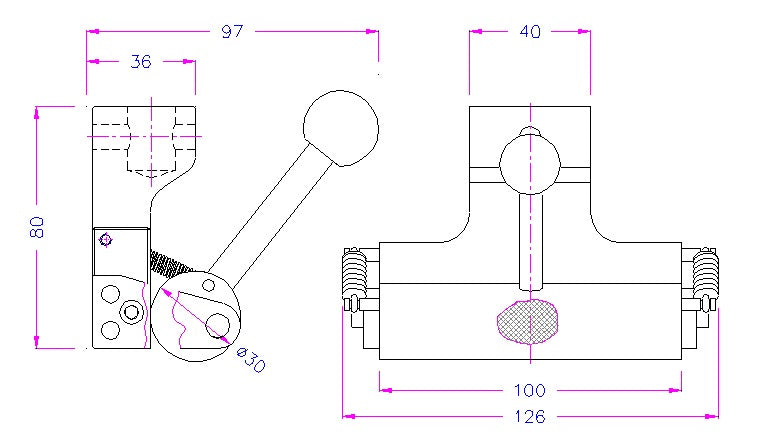

Dimensions [mm]
Grip Connection Dimensions
