B22-3, 3 Point Bend Fixture, 10,000 lbf (50 kN)

2662.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          3 point bend fixture for flex testing. This fixture is commonly use for measuring deflection, flexural modulus, flexural strength and flexural yield strength.

          Features and Specifications
          • Load capacity: 10,000 lbf (50 kN)
          • Body: Aluminum
          • Connection: 5/8' (15.9mm) or 1.25' (31.8 mm) female eye end.
            • Adapters are available for other sizes
          • Temperature range: 0 … +70°C
          • Anvils can be adjusted to different span lengths along the fixture base.
          • Interchangeable rollers: 10mm, 20mm and 30mm diameter
          Included Items
          • Upper anvil
          • Lower fixture with 2 anvils.
          • 10mm, 20mm and 30mm diameter rollers

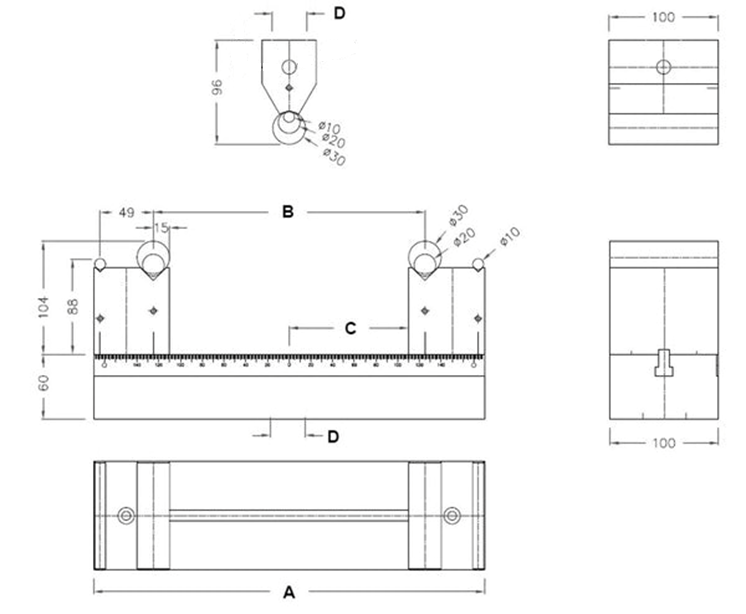

          Dimensions - mm
          Dimensions for the 3 point bend fixture



          Model A *B (anvil span) *C D
          B22-3-360-159
          360 mm
          14.17 in
          30 mm - 250 mm
          1.18 in - 9.84 in
          0 - 110 mm
          0 - 4.33 in
          		5/8' (15.9 mm)
          Female Eye End
          B22-3-360-318 1.25' (31.8 mm)
          Female Eye End
          B22-3-500-159
          500 mm
          19.69 in
          30 mm - 390 mm
          1.18 in - 15.35 in
          0 - 250 mm
          0 - 9.84 in
          		5/8' (15.9 mm)
          Female Eye End
          B22-3-500-318 1.25' (31.8 mm)
          Female Eye End
          B22-3-700-159
          700 mm
          27.56 in
          30 mm - 590 mm
          1.18 in - 23.23 in
          0 - 450 mm
          0 - 17.72 in
          		5/8' (15.9 mm)
          Female Eye End
          B22-3-700-318 1.25' (31.8 mm)
          Female Eye End

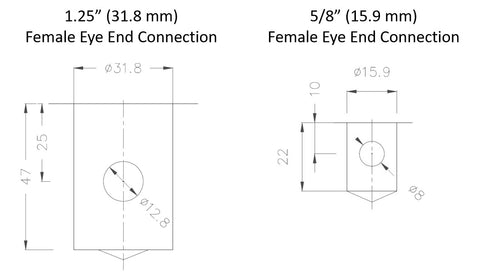

          Connection Dimensions - mm

           Dimensions for the eye end connection on the fixture
