B22-4, 4 Point Bend Fixture for Flexural Testing

3932.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          4 point bend fixture for flex testing. This fixture is commonly use for measuring deflection, flexural modulus, flexural strength and flexural yield strength.

          Features and Specifications
          • Load capacity: 10,000 lbf (50 kN)
          • Body: Aluminum
          • Connection: 5/8' (15.9mm) or 1.25' (31.8 mm) female eye end.
            • Adapters are available for other sizes
          • Temperature range: 0 … +70°C
          • Anvils can be adjusted to different span lengths along the fixture base.
          • Interchangeable rollers10 mm, 20 mm and 30 mm diameter
          Included Items
          • Upper fixture with 2 supports (240 mm)
          • Lower fixture with 2 supports (360 mm, 500 mm, 700 mm)
          • 10 mm, 20 mm and 30 mm diameter rollers (4x)
          Dimensions - mm

          Top Fixture Dimensions

          • Dimensional Drawing Coming Soon
          • Length: 240 mm (9.4 in)
          • Span: 140 mm (5.5 in)

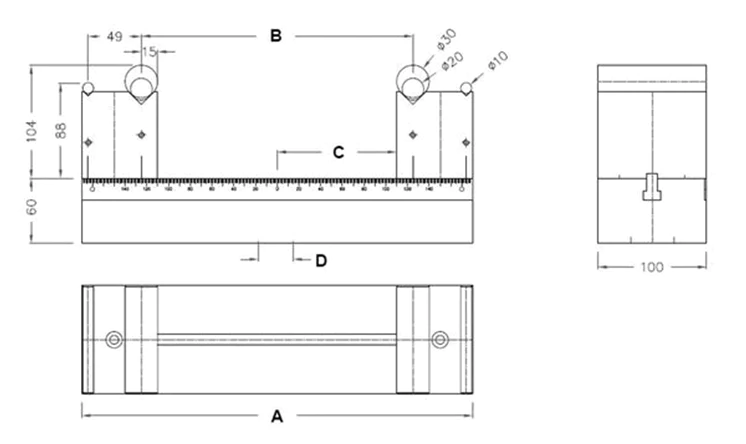

          Lower Fixture Dimensions

          4 Point Bend Fixture Dimensions



          Model A B (span) C D
          B22-4-240-360-159
          360 mm
          14.17 in
          30 mm - 250 mm
          1.18 in - 9.84 in
          0 - 110 mm
          0 - 4.33 in
          5/8' (15.9 mm)
          Female Eye End
          B22-4-240-360-318 1.25' (31.8 mm)
          Female Eye End
          B22-4-240-500-159
          500 mm
          19.69 in
          30 mm - 390 mm
          1.18 in - 15.35 in
          0 - 250 mm
          0 - 9.84 in
          5/8' (15.9 mm)
          Female Eye End
          B22-4-240-500-318 1.25' (31.8 mm)
          Female Eye End
          B22-4-240-700-159
          700 mm
          27.56 in
          30 mm - 590 mm
          1.18 in - 23.23 in
          0 - 450 mm
          0 - 17.72 in
          5/8' (15.9 mm)
          Female Eye End
          B22-4-240-700-318 1.25' (31.8 mm)
          Female Eye End

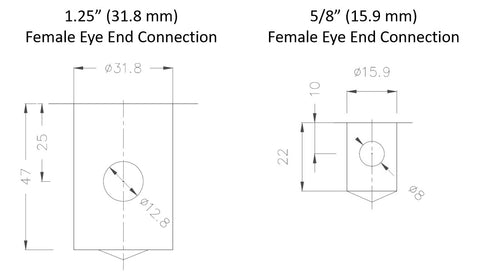

          Connection Dimensions - mm


           Dimensions for the eye end connection on the fixture
