Roller Peel Fixture PF192 with Adjustable Angle DIN EN1372, ISO22631

1166.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

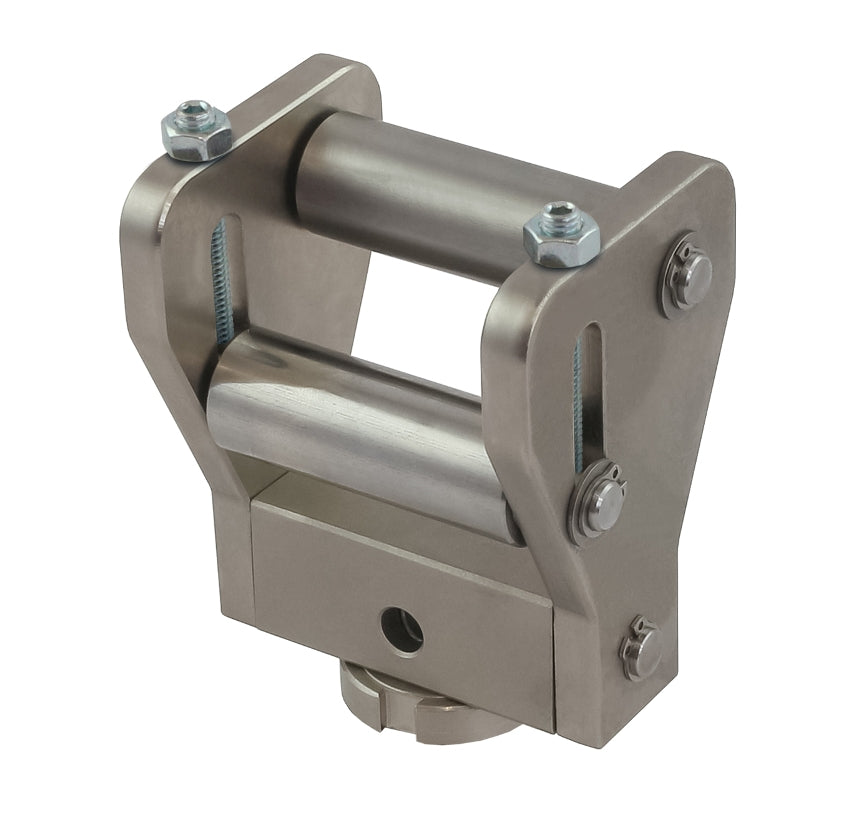

          Floating roller peel fixture with adjustable height of second roller to adjust angle from 0° to 45°. Used in testing resistance of adhesive bonds.

          Available with 20 mm or 25 mm diameter rollers; the smaller roller has more space between the first and second roller. See the dimensions further down the page for more information regarding the roller spacing.

          This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on  Lloyd Instruments,  Chatillon, and  Mark-10 equipment. We also sell these brands of  test stands,  load cells, and  force gauges to use with our grips and fixtures. Adapters are available to accommodate other connection types and sizes.


          Specifications
          • Load capacity: 16 kN
          • Roller diameter: 20 or 25 mm
            • 20 mm roller conforms to DIN EN 1372 and ISO 22631
          • Roller width: 57 mm
          • Weight: 1 kg
          • Connection : 15.9 mm (5/8') female eye end -  Adapters for other sizes
          • Body: Steel, nickel-plated
          • Temperature range: 0 … +70°C
          • Included items: 1 roller peel fixture.
            • Additional lower grip is required (not included in the price)
          Dimensions (mm)

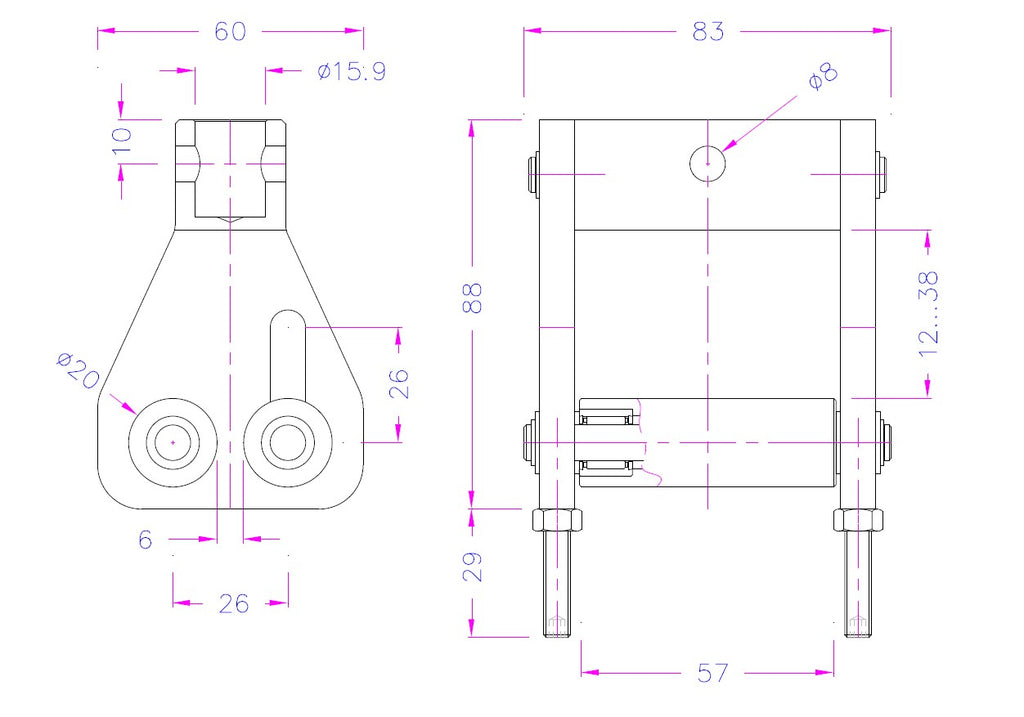

          20 mm Roller

          Dimensions with 20 mm Roller

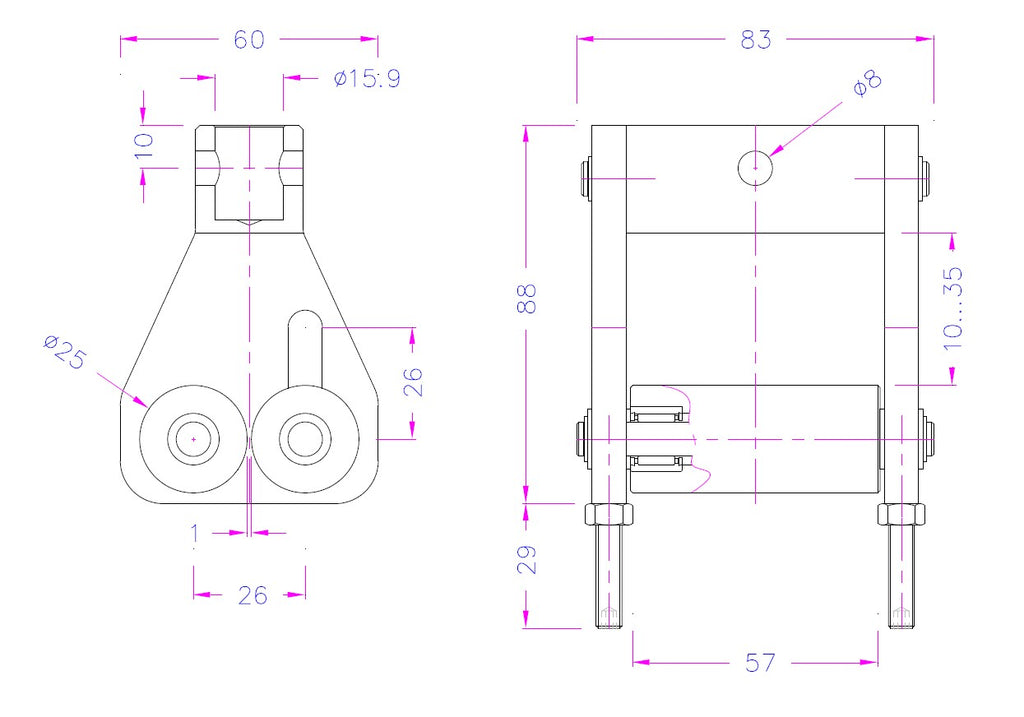

          25 mm Roller

          25 mm Roller Dimensions
