3 point bend fixture for flexural testing. This fixture is commonly used for measuring deflection, flexural modulus, flexural strength and flexural yield strength.
This grip is designed to mount on a standard 5/8' eye end. This connection type is commonly used on
Lloyd Instruments
,
Chatillon
, and
Mark-10
equipment. We also sell these brands of
test stands
,
load cells
, and
force gauges
to use with our grips and fixtures. Adapters
are available to accommodate other connection types and sizes for other brands of equipment.
Features and Specifications
- Span: Adjustable from 4 mm -170 mm
- Load capacity: 2,000 lbf (10 kN)
- Body: Steel
- Connection: 5/8' (15.9mm) female eye end
- Adapters are available for other sizes
- Temperature range: 0 … +70°C
- Weight of nose support: (Upper anvil): 156 grams (6 oz)
Included Items
- (1) Base bar
- (2) Adjustable supports (anvils) that mount to the base bar
- (1) Nose support

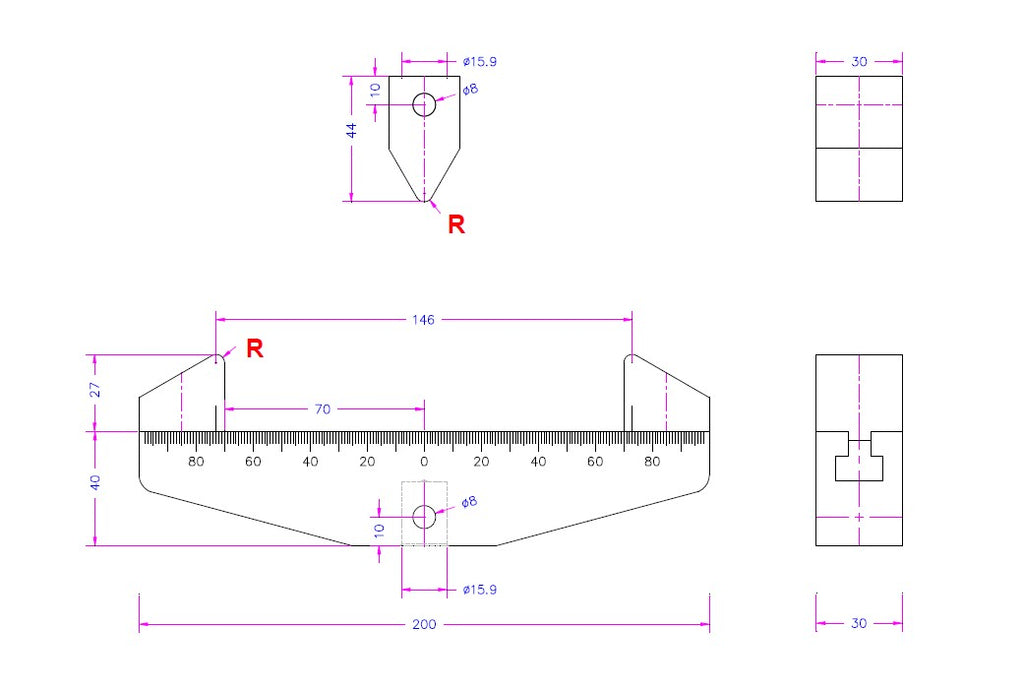

Dimensions - mm
*R: Radiuses of 1 mm, 2 mm, 3 mm, 3.2 mm, 5 mm, and 10 mm are available.

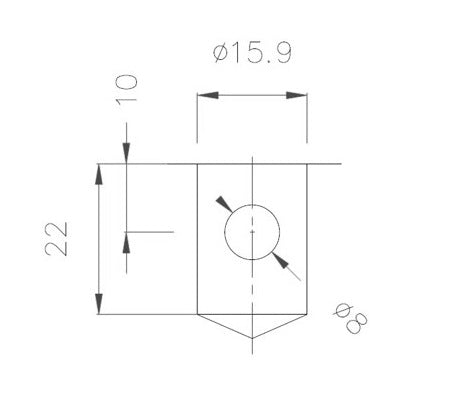

Connection Dimensions - mm
